Azure VM and VMSS

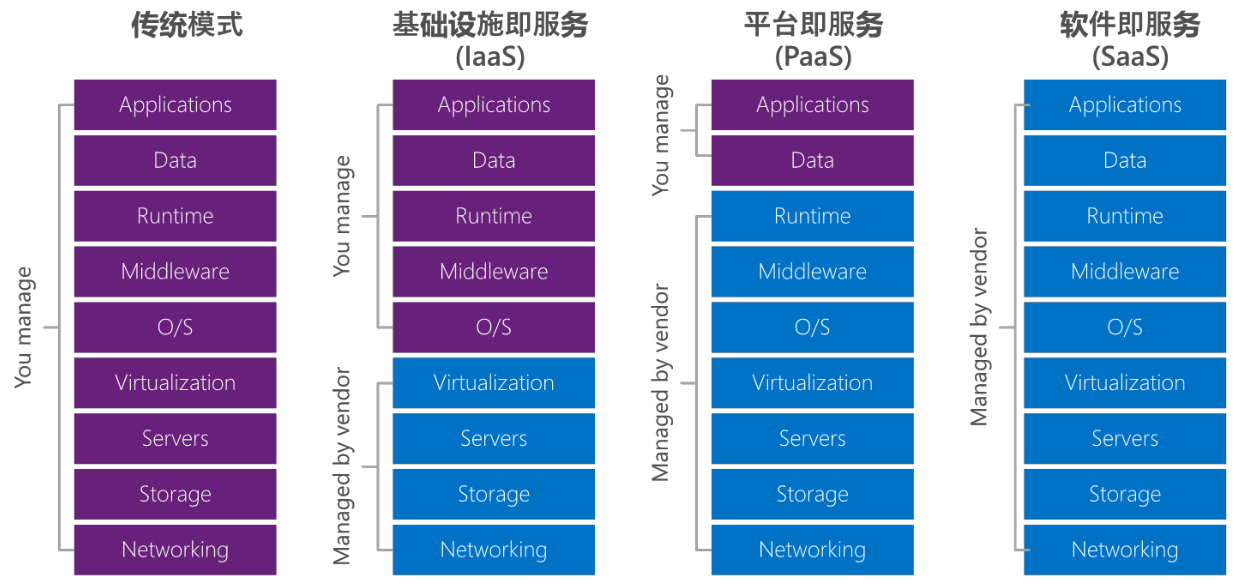

VM - IaaS Service

  • IaaS: Cloud provides servers, virtualization, storage, and networking; users configure dev environments, manage apps and data
  • PaaS: Cloud provides complete dev environment; users develop apps and manage data
  • SaaS: Cloud provides ready-to-use applications; users consume directly

image-20250607215225183

VM Physical Node Architecture

VM is deployed in Windows Server physical machines, which reside on racks. Racks have management hardware called Fabric, controlled by Fabric Controller.

Fabric receives definitions for hardware, networking, and other resources. It controls datacenter resource allocation, manages service lifecycles, monitors heartbeats, and handles failures. Datacenter servers form clusters of approximately 1000, also called blades. Clusters belong to different fault domains; each cluster is managed and deployed by FC.

Fabric capabilities:

  • Run process service model files
  • Allocate compute and network resources (provisioning)
  • Prepare nodes
  • Configure networking
  • Provide service-health management

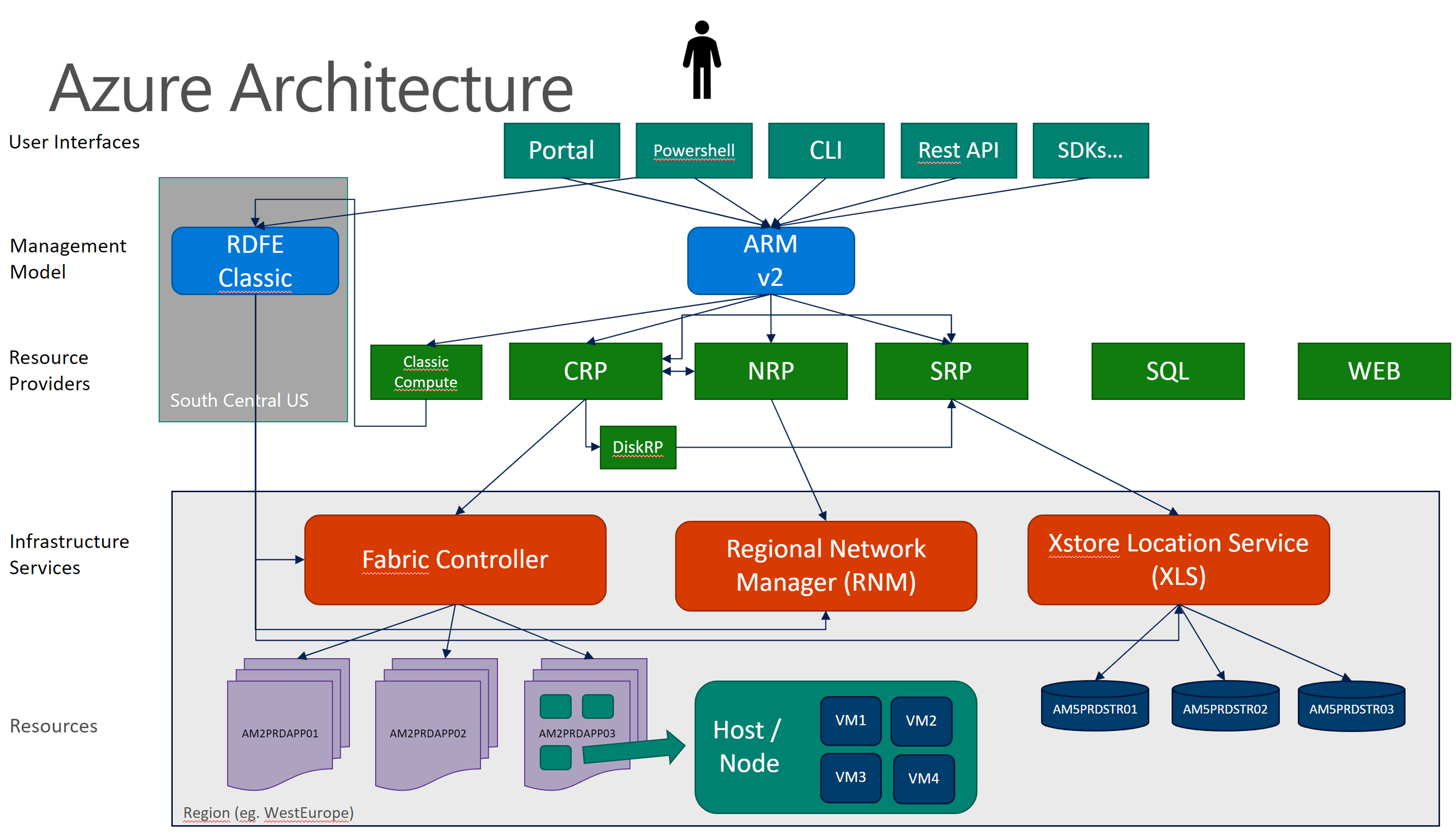

VM Deployment Architecture

Fabric

image-20250607215705735

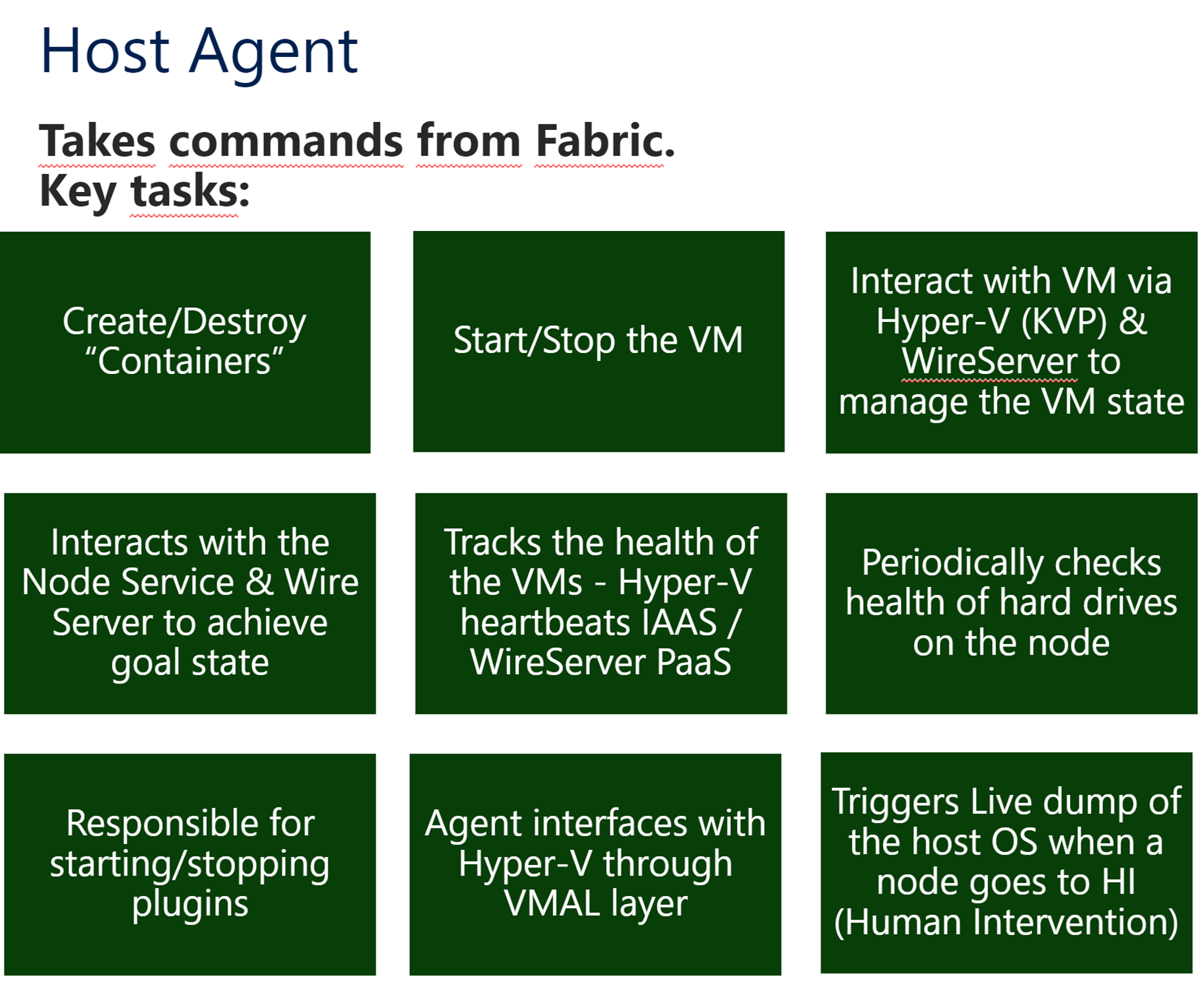

Host Agent

Fabric creates nodes (physical nodes where VMs reside). Physical nodes have a Host Agent:

image-20250607215905744

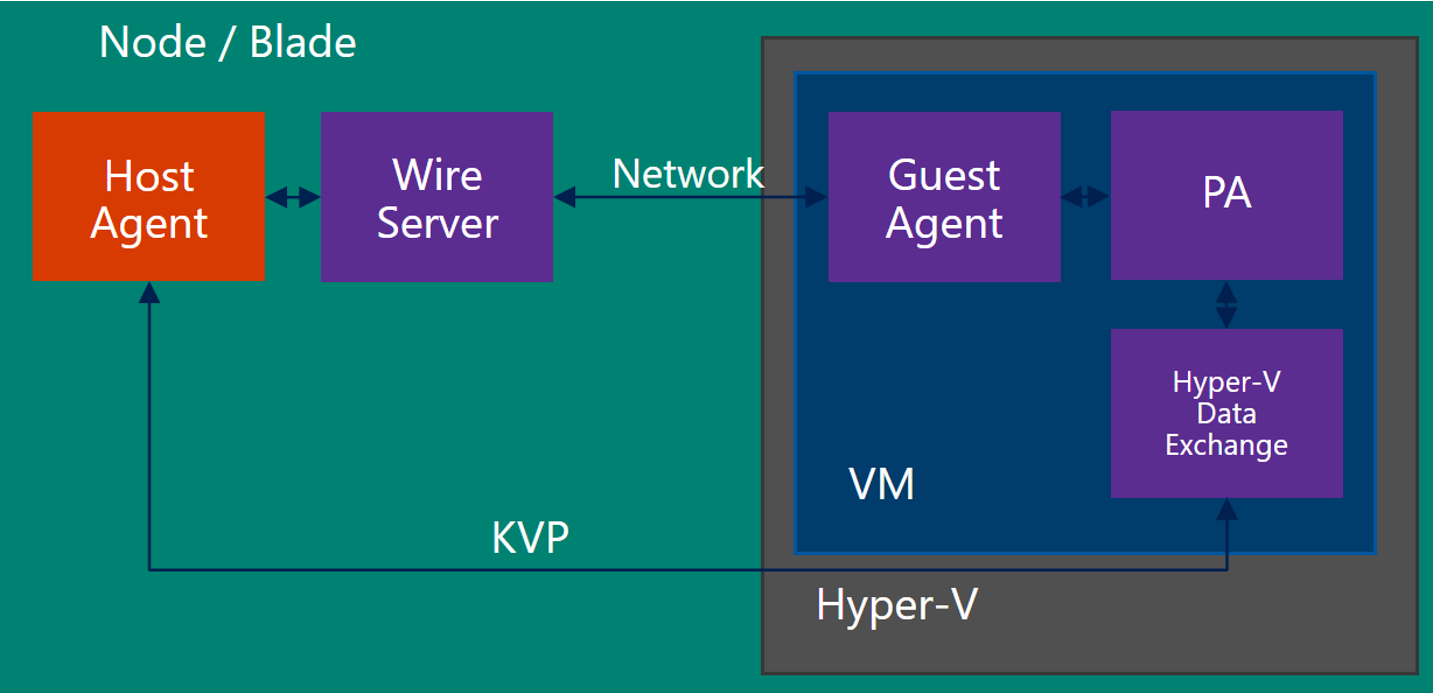

Guest Agent

Physical nodes contain multiple VMs. VMs have a Guest Agent:

image-20250607215953894

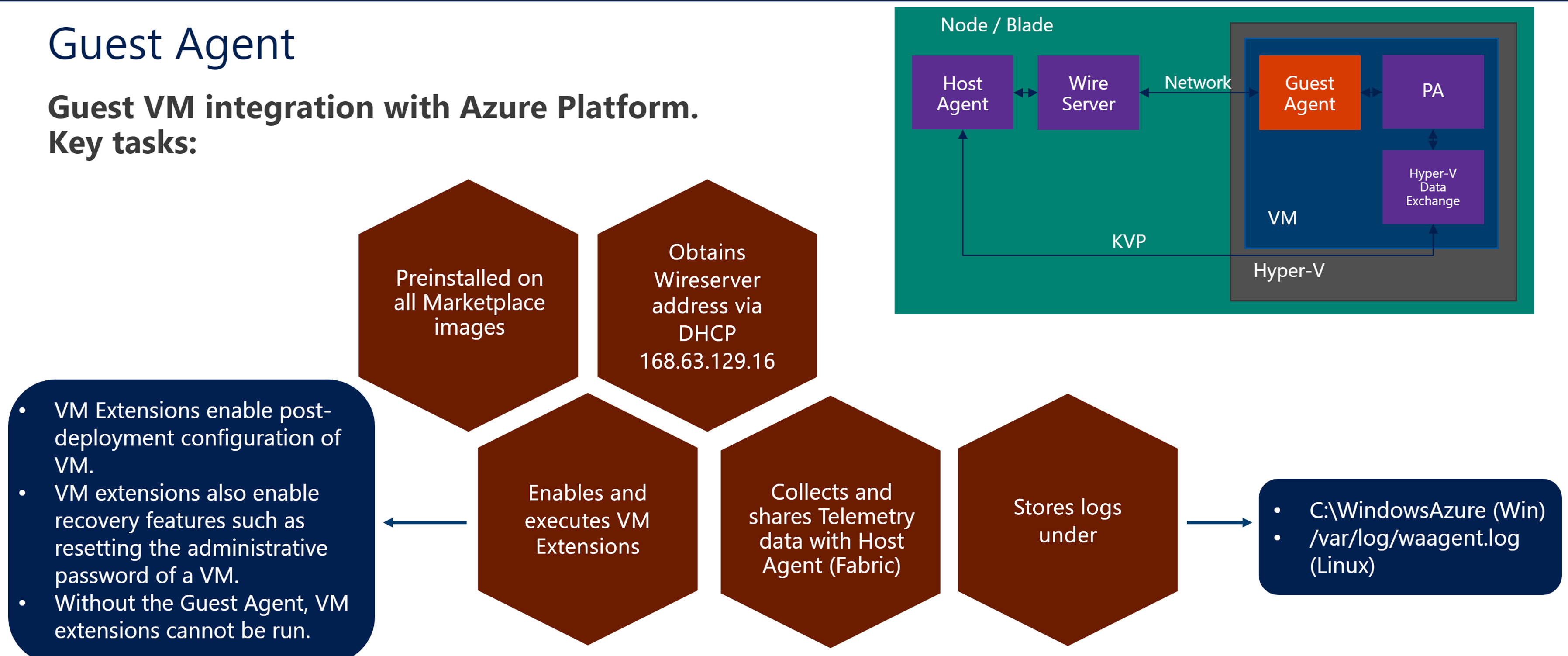

Guest Agent functions:

image-20250607220229193

Manually Reinstall Guest Agent (waagent)

# centos7 lab test：
# uninstall waagent
systemctl stop waagent
waagent -deprovision -force
rm -rf /var/lib/waagent

# install waagent
service network restart
yum install -y git
# if python2.7 is not installed, install it
pkg install python27
pkg install Py27-setuptools27
ln -s /usr/local/bin/python2.7 /usr/bin/python

git clone https://github.com/Azure/WALinuxAgent.git
cd WALinuxAgent
python setup.py install --register-service
waagent --version
systemctl status waagent

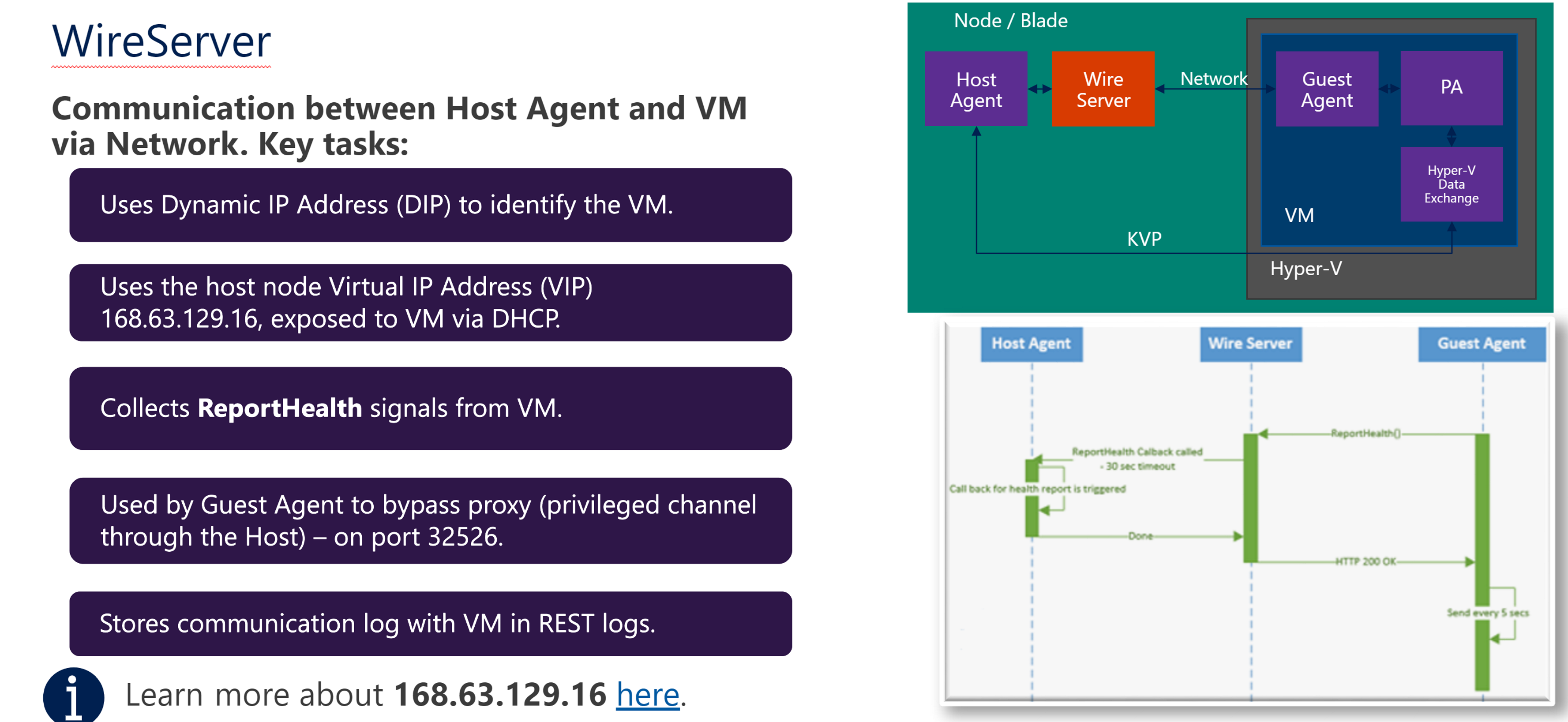

Wire Server

Guest Agent communicates with Host Agent through Wire Server. Wire Server docs:

What is IP address 168.63.129.16? | Microsoft Learn

Azure Instance Metadata Service for virtual machines - Azure Virtual Machines | Microsoft Learn

image-20250607220207319

Wire Server troubleshooting:

Wire Server Communication

VM Agent communicates with Azure platform to report status. VM gets IP and DHCP through 168.63.129.16.

The VM Agent requires outbound communication over ports 80/tcp and 32526/tcp with WireServer (168.63.129.16).

These should be open in the local firewall on the VM. Communication on these ports with 168.63.129.16 is not subject to configured NSGs.

168.63.129.16 can provide DNS services to the VM. If not desired, outbound traffic to 168.63.129.16 ports 53/udp and 53/tcp can be blocked in the local firewall.

Check connectivity:

Windows OS:

Test-NetConnection 168.63.129.16 -Port 80
Test-NetConnection 168.63.129.16 -Port 32526

Linux OS:

telnet 168.63.129.16 80
telnet 168.63.129.16 32526

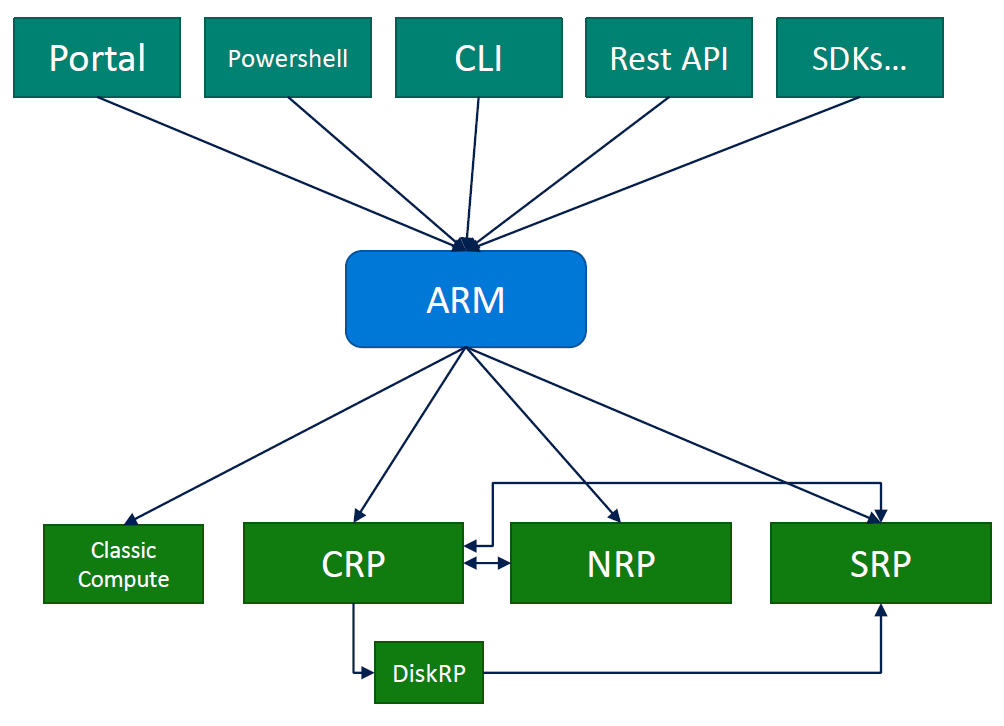

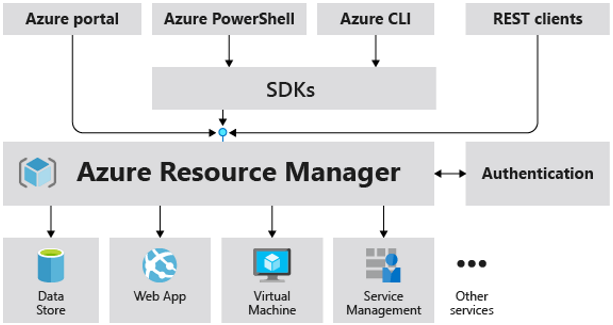

Azure Resource Manager

image-20250608093651506

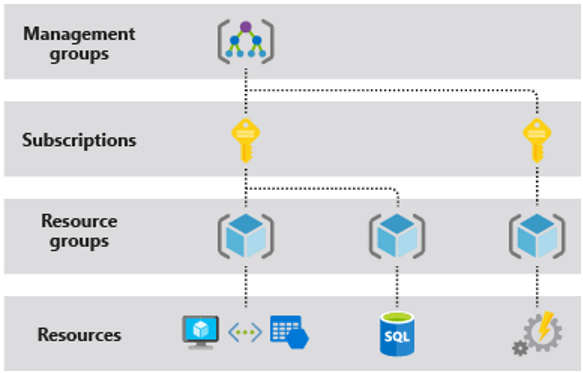

Users operate Azure resources through Azure Tools, all requests are received by ARM which performs the corresponding operations:

image-20250608093727794

ARM Template: JSON files defining resource infrastructure and configuration, enabling automated deployment of identical environments.

Example of VM deployment:

image-20250608093812500

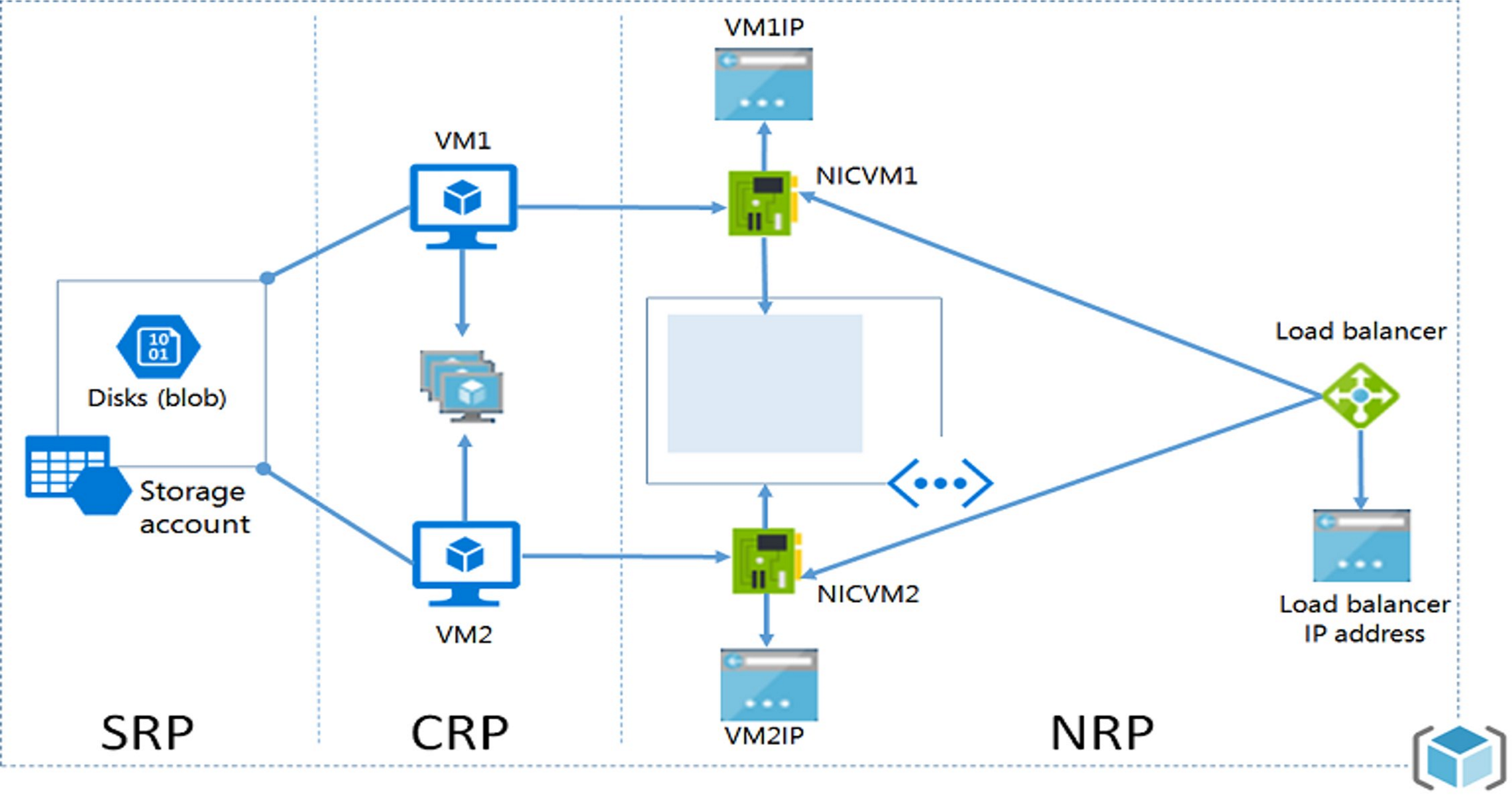

VM ARM Deployment Process

SRP, CRP, NRP etc. create corresponding resources respectively:

image-20250607220511709

VM Regional Code

Region Code
China North bjb
China North2 bjb2
China East sha
China East2 sha2

VM Platform Maintenance

维护和更新 - Azure Virtual Machines | Microsoft Docs

Maintenance and updates - Azure Virtual Machines | Microsoft Docs

Types

VM updates and deployments are roughly divided into 2 types:

https://docs.azure.cn/zh-cn/virtual-machines/maintenance-notifications

  1. If maintenance does not require a reboot, Azure pauses the VM for a few seconds during host update. These maintenance operations are applied fault domain by fault domain. The process stops if any warning health signals are received. Maintenance requiring reboot sends a notification.
  2. If maintenance requires a reboot, the system notifies the planned maintenance time. A window of approximately 35 days is provided for self-service maintenance.

Memory-Preserving Updates

Memory-preserving updates typically complete within ~10 seconds. For this type of deployment, the platform does not send notifications. However, you can obtain platform maintenance/deployment info through VM Metadata Service. See Azure 中适用于Windows VM 的计划事件.

Alerts

VM health status alerting. Common monitoring options:

  1. Scheduled Events - Monitor the following events, see Azure 中适用于Windows VM 的计划事件 | Azure Docs:
  2. Platform-initiated maintenance (e.g., VM reboot, live migration, memory-preserving updates)
  3. VM running on degraded host hardware predicted to fail soon

  4. User-initiated maintenance (e.g., user restart or redeploy VM)

  5. Resource Health - Monitor VM state (start, shutdown, etc.). See Azure 资源运行状况概述 | Azure Docs & 通过Azure 资源运行状况支持的资源类型 | Azure Docs

  6. Azure Log Analytics Agent - More powerful monitoring and alerting service, such as monitoring heartbeats and CPU through log queries. See Azure 中的警报和通知监视概述 | Azure Docs

Azure VM Basics

VM Availability Options

  • Fault Domain
  • Physical grouping
  • In a datacenter, servers are divided into groups, each using the same power supply and network equipment

  • If one group's power or network fails, only that group is affected

  • Update Domain

  • Logical grouping
  • When servers need patches or upgrades requiring restarts, not all servers restart at once

  • Divided into update domains, only one group restarts at a time

  • Availability Sets

  • Within a datacenter, an availability set consists of multiple fault domains and update domains (configurable)

  • A logical concept: VMs in an availability set are distributed across different fault and update domains for high availability

  • Availability Zones

  • Physically independent zones with separate power, networking, etc.
  • Use zone-replicated VMs; if one datacenter goes down, replicated VMs activate in another
  • Each zone has at least 3 datacenters, each with independent power, cooling, and networking
  • Can be understood as a larger-scale fault domain and update domain
  • Protects against entire datacenter failures

  • Azure China limited support (North3 supports)

  • Regional Pair - Paired regions ensure upgrades affect only one, with priority recovery for one

  • VM Scale Sets - Build load-balanced clusters

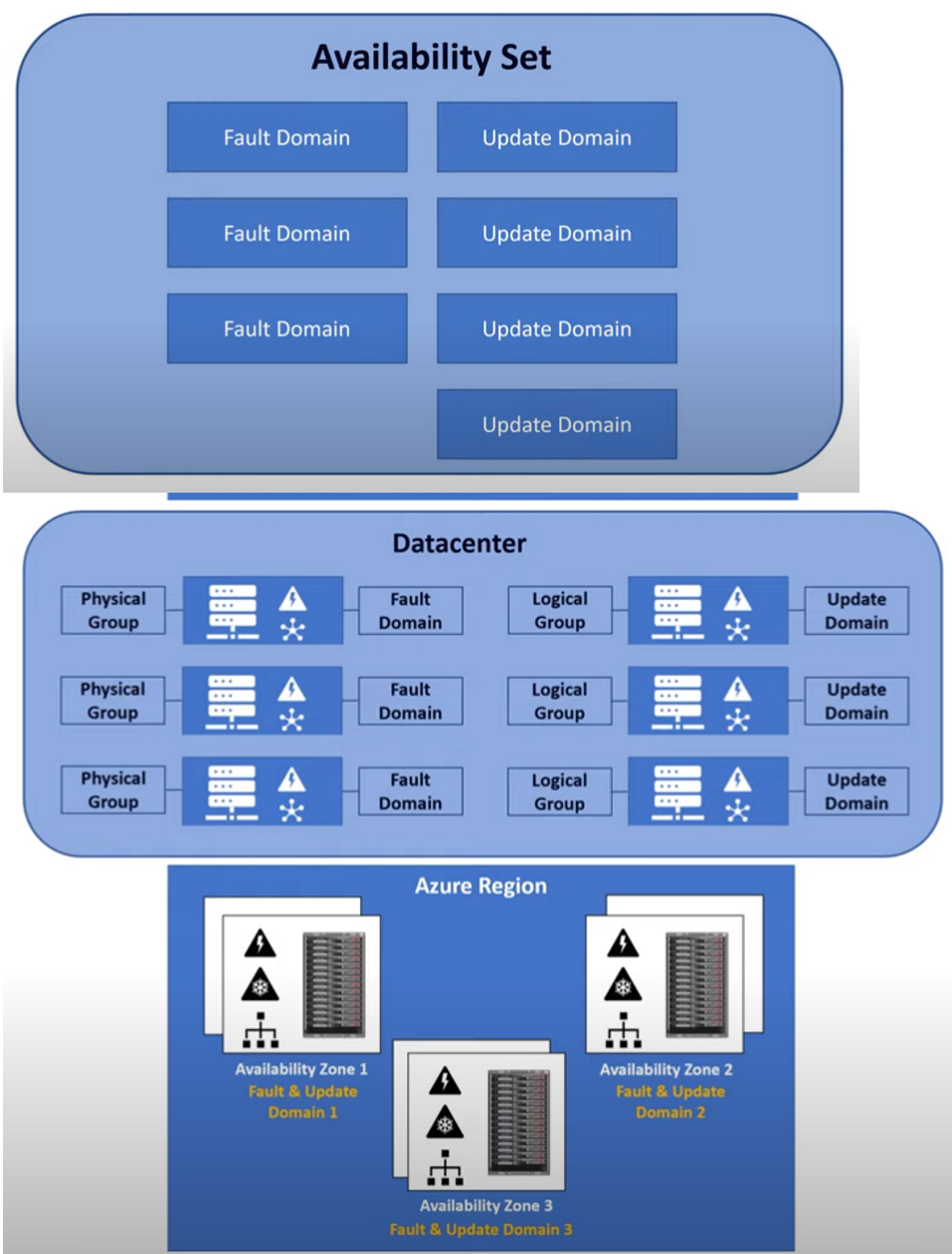

Create VM in Availability Set

使用 Azure PowerShell 在可用性集中部署 VM - Azure 虚拟机 | 微软文档

image-20250608095059478

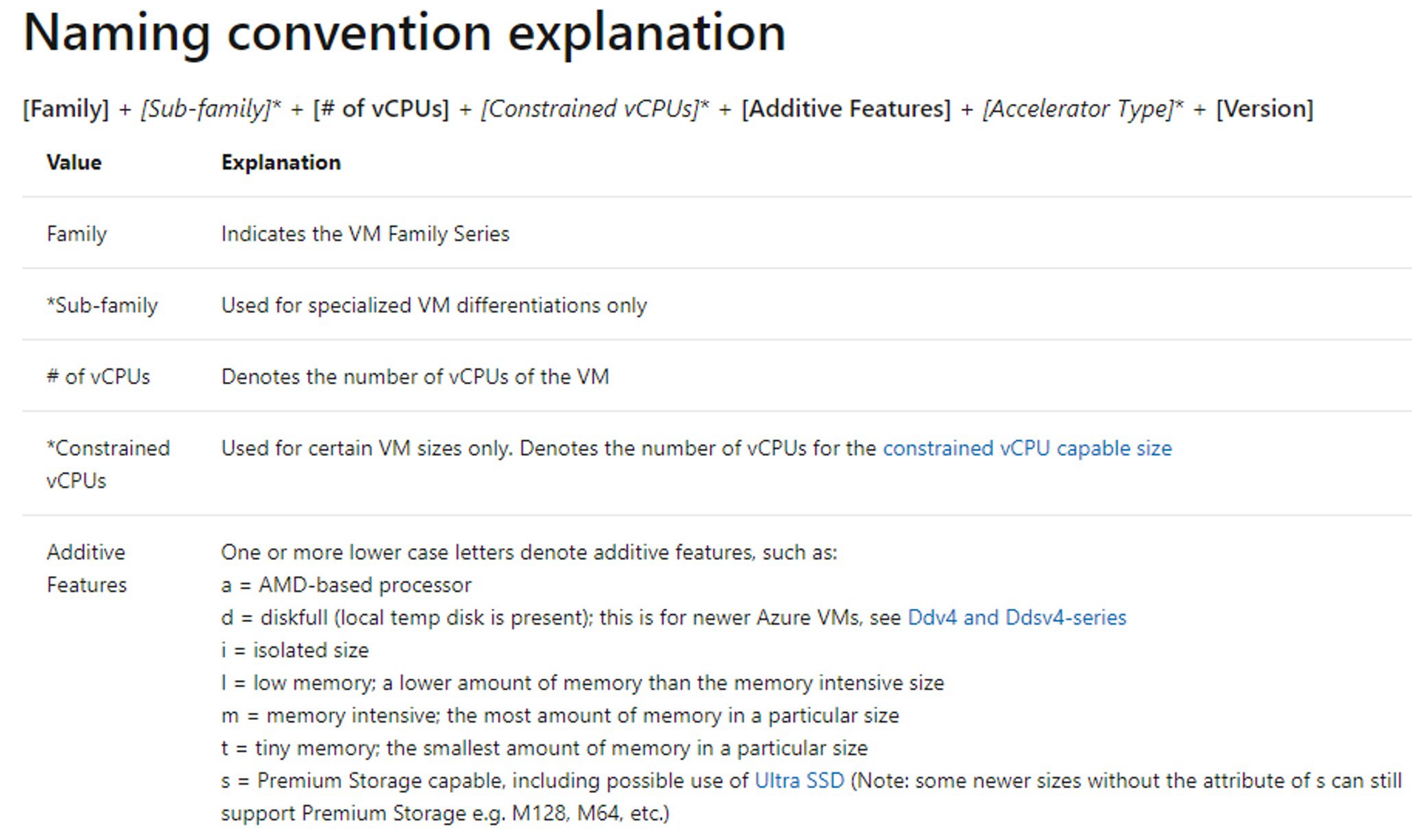

VM SKU Naming Convention

image-20250607220348948

VM Extension

Azure VM Extensions are small programs providing deployment, configuration, and automation.

How to install:

  • Using Azure CLI, PowerShell, ARM, Portal

Prerequisites:

  • Need Azure Linux Agent installed to manage VM extensions
  • Some extensions have OS limitations

Related docs:

Troubleshooting Extensions

Extensions are managed by VM Agent. Log location: /var/log/azure/<extension name>/extension.log

Common Extensions

VMAccess

What?

  • VM disk error, forgotten root password, or deleted SSH private key - need recovery, which normally requires datacenter console access
  • VMAccess Extension can access the console to reset Linux access
  • Requires waagent.service process running on Linux

How?

  • When VM can access Azure Linux Agent:
  • Use Azure CLI command with parameters to set directly
  • Create JSON file with reset parameters, use Azure CLI to read and apply

Steps:

Run Command

Can run custom commands in a VM.

Run scripts in a Windows VM in Azure using action Run Commands - Azure Virtual Machines | Microsoft Learn

Run Command Script Location

View run command scripts on Linux VM at /var/lib/waagent/run-command/download. script.sh is the script, stdout is the execution result.

VM Image and Snapshot

What is Image:

  • Image is a copy of a complete VM or OS disk only. Use a configured VM as template to create multiple identical VMs.
  • Before creating VM from image, remove personal account info, then generalize.

Difference between Image and Snapshot:

  • Image contains all disks of the VM, can be used to create new VMs
  • Snapshot is a copy of a single disk
  • Image creation requires deprovision to clear personal info; snapshot does not

How:

  • For managed disk VMs, Portal has a direct capture option

Docs:

Azure VM Boot Diagnostics

Azure 中 VM 的启动诊断 | 微软文档

In Portal, use screen display / serial log to view VM boot issues. Use screen display to check VM state when it becomes unresponsive.

  • Linux:
  • sos report: 如何收集Linux 虚拟机的诊断日志 | Azure Docs
  • Most system logs are in /var/log/: e.g., /var/log/boot.log for boot info; /var/log/secure for SSH, sudo, user add, password changes; /var/log/messages for important system info

  • rsyslogd manages logs. Configure in /etc/rsyslog.conf

  • Windows System Event Log:

  • C:\Windows\System32\winevt\Logs
  • C:\Windows\Memory.dmp if available
  • C:\Windows\Minidump\ if available

Azure VM Troubleshooting

Recovery VM

Recovery VM Process

When a VM has boot or SSH issues, create a snapshot of the OS Disk, then create a Recovery Disk from the snapshot and attach it to a recovery VM for troubleshooting.

  1. Create snapshot of issue VM's OS Disk, create new Recovery Disk from snapshot.

  2. Create a Dv3 or Ev3+ VM in the same Region as the Recovery Disk. Install Windows Server 2016+ (supports nested virtualization), enable Hyper-V:

Install-WindowsFeature -Name Hyper-V -IncludeManagementTools -Restart
  1. Attach Recovery Disk to the VM, offline the disk, create Hyper-V VM with it:
  2. Computer Management - Disk Management - Offline
  3. Hyper-V Manager - New VM - Attach a virtual hard disk later
  4. VM Settings - IDE Controller0 - Hard Drive - Physical Hard Disk - Apply

  5. Get into console

  6. Access VM console for troubleshooting or repair.

This method is suitable when Guest Agent is inaccessible, or for resetting local passwords. Related docs:

Mount OS Disk

When the filesystem is mounted as read-only due to incorrect fstab settings and internal files cannot be modified, the Hyper-V boot mode approach is difficult. Workaround: attach the issue disk as a data disk to another VM, mount it to a directory, edit fstab. After changes, re-attach to the nested VM for further operations.

Mount Disk + chroot

Related doc: How to troubleshoot the chroot environment in a Linux Rescue VM - Virtual Machines | Microsoft Learn

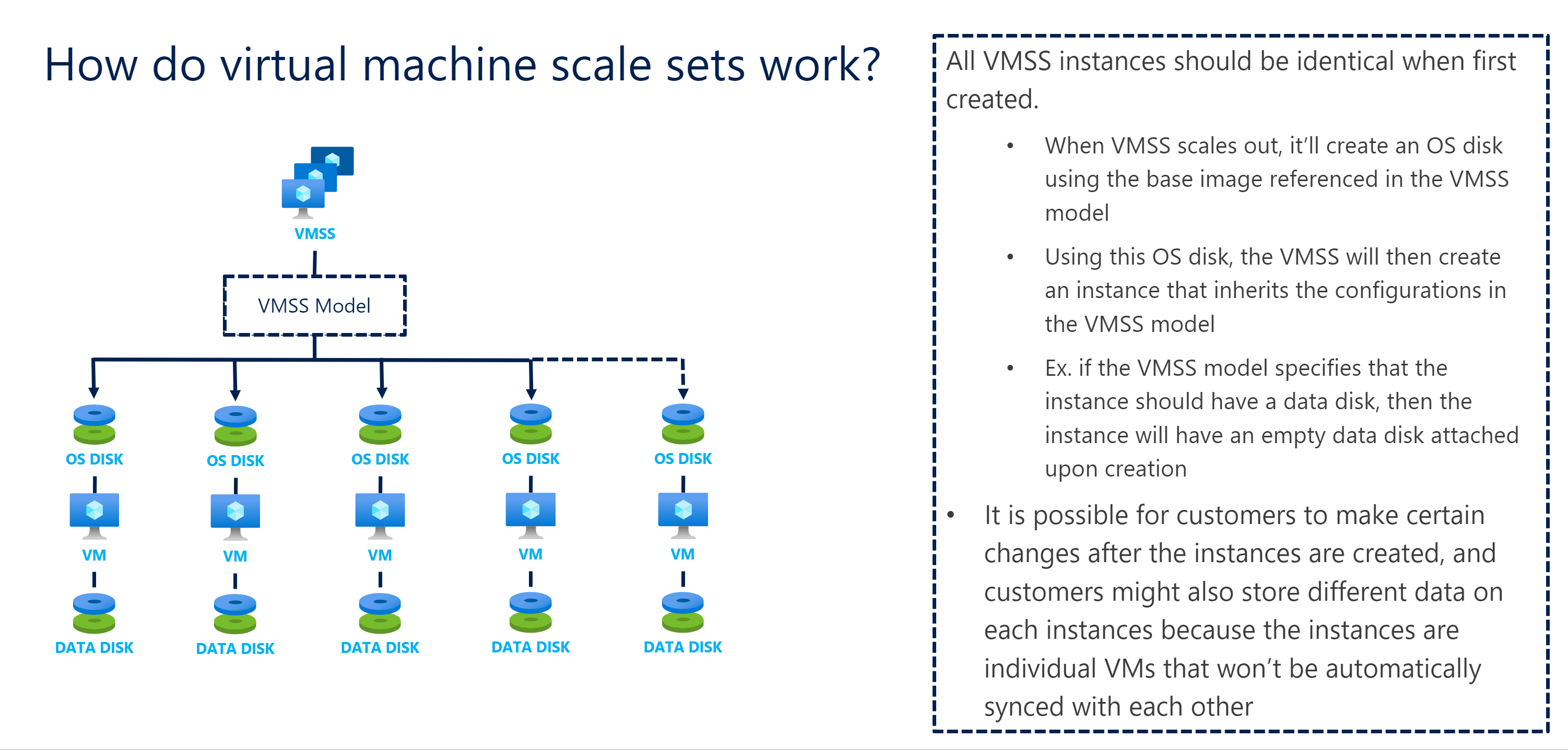

Azure VMSS

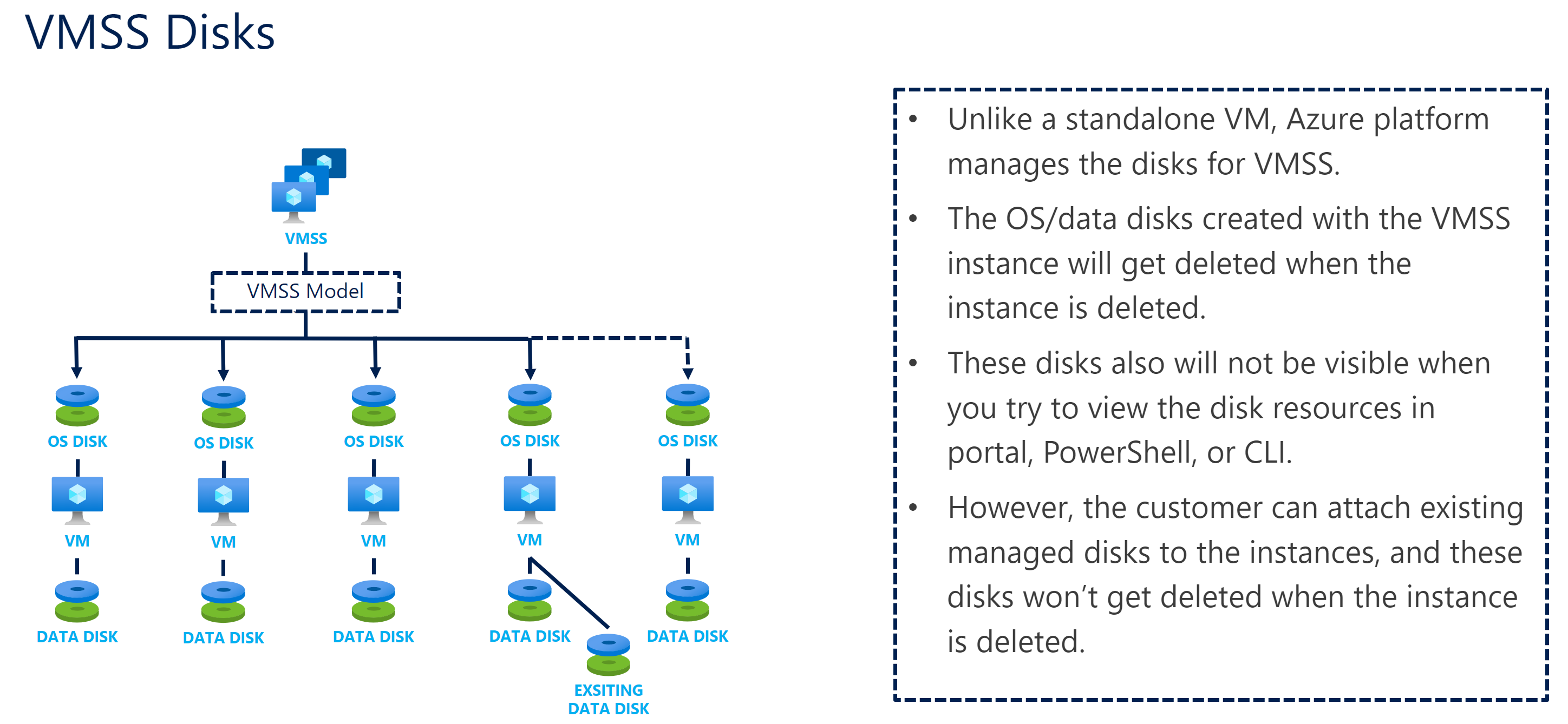

VMSS (Virtual Machine Scale Sets) is a combination of independent VMs that is load-balanced, can automatically scale VM instances based on demand. Features centralized management, configuration, and updating of large numbers of VMs. Key advantage over manual creation is automated configuration, automatic load balancing. Suitable for large-scale compute tasks and workloads with varying demand over time, saving cost and time.

image-20250608100534712

image-20250608100552233

VMSS - Load Balancer

Load Balancer works at the transport layer. Methods to access VMSS:

  • Assign each VM its own public IP (expensive)

  • Use Load Balancer with NAT:

  • Assign public IP to LB, LB routes traffic through each VM's port to individual VM instances
  • By default, NAT rules are added to LB, forwarding remote connection traffic to each VM on given ports

VMSS Auto-scale

VM Security

Azure VM Security Best Practices
