Tekton

介绍

Tekton 是一个功能强大且灵活的 Kubernetes 原生开源框架，是谷歌开源的，功能强大且灵活，开源社区也正在快速的迭代和发展壮大，主要用于创建持续集成和交付（CI/CD）系统。通过抽象底层实现细节，用户可以跨多云平台和本地系统进行构建、测试和部署。另外，基于kubernetes CRD定义的pipeline流水线也是Tekton最重要的特征。
它原本是 knative 项目里面一个叫做 build-pipeline 的子项目，用来作为 knative-build 的下一代引擎。然而，随着 k8s 社区里各种各样的需求涌入，这个子项目慢慢成长为一个通用的框架，能够提供灵活强大的能力去做基于 k8s 的构建发布。Tekton 其实只提供 Pipeline 这个一个功能，Pipeline 会被直接映射成 K8s Pod 等 API 资源。而比如应用发布过程的控制，灰度和上线策略，都是我们自己编写 K8s Controller来实现的，也就意味着 Tekton 不会在K8s 上盖一个”大帽子“，比如我们想看发布状态、日志等是直接通过 K8s 查看这个 Pipeline 对应的 Pod 的状态和日志，不需要再面对另外一个 API。

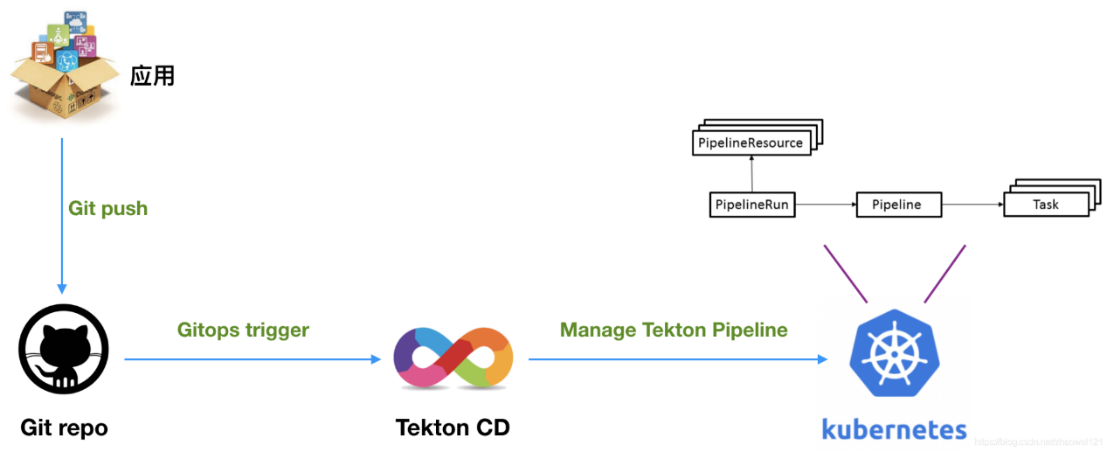

自动发布流程

用户把需要部署的应用先按照一套标准的应用定义写成 YAML 文件（类似 Helm Chart）；
用户把应用定义 YAML 推送到 Git 仓库里；
Tekton CD (一个 K8s Operator) 会监听到相应的改动，根据不同条件生成不同的 Tekton Pipelines；
Tekton CD 的操作具体分为以下几种情况：
如果 Git 改动里有一个应用 YAML 且该应用不存在，那么将渲染和生成 Tekton Pipelines 用来创建应用。
如果 Git 改动里有一个应用 YAML 且该应用存在，那么将渲染和生成 Tekton Pipelines 用来升级应用。这里我们会根据应用定义 YAML 里的策略来做升级，比如做金丝雀发布、灰度升级。
如果 Git 改动里有一个应用 YAML 且该应用存在且标记了“被删除”，那么将渲染和生成 Tekton Pipelines 用来删除应用。确认应用被删除后，我们才从 Git 里删除这个应用的 YAML

术语

Tekton 为Kubernetes 提供了多种 CRD 资源对象，可用于定义我们的流水线，主要有以下几个CRD资源对象：

Task：表示执行命令的一系列步骤，task 里可以定义一系列的 steps，例如编译代码、构建镜像、推送镜像等，每个 step 实际由一个 Pod 里的容器执行。
TaskRun：task只是定义了一个模版，taskRun 才真正代表了一次实际的运行，当然你也可以自己手动创建一个taskRun，taskRun创建出来之后，就会自动触发task描述的构建任务。
Pipeline：一组任务，表示一个或多个task、PipelineResource 以及各种定义参数的集合。
PipelineRun：类似task和taskRun的关系，pipelineRun也表示某一次实际运行的 pipeline，下发一个 pipelineRun CRD 实例到 Kubernetes后，同样也会触发一次 pipeline 的构建。
PipelineResource：表示pipeline输入资源，比如github上的源码，或者pipeline 输出资源，例如一个容器镜像或者构建生成的jar包等。

安装Tekton

准备镜像和安装文件

#把tekton-0-12-0.tar.gz和busybox-v-1-0.tar.gz上传到worker node机器上，手动解压：
docker load -i tekton-0-12-0.tar.gz
docker load -i busybox-v-1-0.tar.gz
vim release.yaml

# Copyright 2019 The Tekton Authors
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: v1
kind: Namespace
metadata:
  name: tekton-pipelines

---
# Copyright 2019 The Tekton Authors
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: policy/v1beta1
kind: PodSecurityPolicy
metadata:
  name: tekton-pipelines
spec:
  privileged: false
  allowPrivilegeEscalation: false
  volumes:
  - 'emptyDir'
  - 'configMap'
  - 'secret'
  hostNetwork: false
  hostIPC: false
  hostPID: false
  runAsUser:
    rule: 'RunAsAny'
  seLinux:
    rule: 'RunAsAny'
  supplementalGroups:
    rule: 'MustRunAs'
    ranges:
    - min: 1
      max: 65535
  fsGroup:
    rule: 'MustRunAs'
    ranges:
    - min: 1
      max: 65535

---
# Copyright 2020 The Tekton Authors
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     https://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: tekton-pipelines-controller-cluster-access
rules:
- apiGroups: [""]
  # Namespace access is required because the controller timeout handling logic
  # iterates over all namespaces and times out any PipelineRuns that have expired.
  # Pod access is required because the taskrun controller wants to be updated when
  # a Pod underlying a TaskRun changes state.
  resources: ["namespaces", "pods"]
  verbs: ["list", "watch"]
  # Controller needs cluster access to all of the CRDs that it is responsible for
  # managing.
- apiGroups: ["tekton.dev"]
  resources: ["tasks", "clustertasks", "taskruns", "pipelines", "pipelineruns", "pipelineresources",
    "conditions"]
  verbs: ["get", "list", "create", "update", "delete", "patch", "watch"]
- apiGroups: ["tekton.dev"]
  resources: ["taskruns/finalizers", "pipelineruns/finalizers"]
  verbs: ["get", "list", "create", "update", "delete", "patch", "watch"]
- apiGroups: ["tekton.dev"]
  resources: ["tasks/status", "clustertasks/status", "taskruns/status", "pipelines/status",
    "pipelineruns/status", "pipelineresources/status"]
  verbs: ["get", "list", "create", "update", "delete", "patch", "watch"]
- apiGroups: ["policy"]
  resources: ["podsecuritypolicies"]
  resourceNames: ["tekton-pipelines"]
  verbs: ["use"]
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  # This is the access that the controller needs on a per-namespace basis.
  name: tekton-pipelines-controller-tenant-access
rules:
- apiGroups: [""]
  resources: ["pods", "pods/log", "secrets", "events", "serviceaccounts", "configmaps",
    "persistentvolumeclaims", "limitranges"]
  verbs: ["get", "list", "create", "update", "delete", "patch", "watch"]
  # Unclear if this access is actually required.  Simply a hold-over from the previous
  # incarnation of the controller's ClusterRole.
- apiGroups: ["apps"]
  resources: ["deployments"]
  verbs: ["get", "list", "create", "update", "delete", "patch", "watch"]
- apiGroups: ["apps"]
  resources: ["deployments/finalizers"]
  verbs: ["get", "list", "create", "update", "delete", "patch", "watch"]
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: tekton-pipelines-webhook-cluster-access
rules:
- # The webhook needs to be able to list and update customresourcedefinitions,
  # mainly to update the webhook certificates.
  apiGroups: ["apiextensions.k8s.io"]
  resources: ["customresourcedefinitions", "customresourcedefinitions/status"]
  verbs: ["get", "list", "update", "patch", "watch"]
- apiGroups: ["admissionregistration.k8s.io"]
  # The webhook performs a reconciliation on these two resources and continuously
  # updates configuration.
  resources: ["mutatingwebhookconfigurations", "validatingwebhookconfigurations"]
  # knative starts informers on these things, which is why we need get, list and watch.
  verbs: ["list", "watch"]
- apiGroups: ["admissionregistration.k8s.io"]
  resources: ["mutatingwebhookconfigurations"]
  # This mutating webhook is responsible for applying defaults to tekton objects
  # as they are received.
  resourceNames: ["webhook.pipeline.tekton.dev"]
  # When there are changes to the configs or secrets, knative updates the mutatingwebhook config
  # with the updated certificates or the refreshed set of rules.
  verbs: ["get", "update"]
- apiGroups: ["admissionregistration.k8s.io"]
  resources: ["validatingwebhookconfigurations"]
  # validation.webhook.pipeline.tekton.dev performs schema validation when you, for example, create TaskRuns.
  # config.webhook.pipeline.tekton.dev validates the logging configuration against knative's logging structure
  resourceNames: ["validation.webhook.pipeline.tekton.dev", "config.webhook.pipeline.tekton.dev"]
  # When there are changes to the configs or secrets, knative updates the validatingwebhook config
  # with the updated certificates or the refreshed set of rules.
  verbs: ["get", "update"]

---
# Copyright 2020 The Tekton Authors
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     https://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: tekton-pipelines-controller
  namespace: tekton-pipelines
rules:
- apiGroups: [""]
  resources: ["configmaps"]
  verbs: ["list", "watch"]
- # The controller needs access to these configmaps for logging information and runtime configuration.
  apiGroups: [""]
  resources: ["configmaps"]
  verbs: ["get"]
  resourceNames: ["config-logging", "config-observability", "config-artifact-bucket",
    "config-artifact-pvc", "feature-flags", "config-leader-election"]
---
kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: tekton-pipelines-webhook
  namespace: tekton-pipelines
rules:
- apiGroups: [""]
  resources: ["configmaps"]
  verbs: ["list", "watch"]
- # The webhook needs access to these configmaps for logging information.
  apiGroups: [""]
  resources: ["configmaps"]
  verbs: ["get"]
  resourceNames: ["config-logging", "config-observability"]
- apiGroups: [""]
  resources: ["secrets"]
  verbs: ["list", "watch"]
- # The webhook daemon makes a reconciliation loop on webhook-certs. Whenever
  # the secret changes it updates the webhook configurations with the certificates
  # stored in the secret.
  apiGroups: [""]
  resources: ["secrets"]
  verbs: ["get", "update"]
  resourceNames: ["webhook-certs"]

---
# Copyright 2019 The Tekton Authors
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
apiVersion: v1
kind: ServiceAccount
metadata:
  name: tekton-pipelines-controller
  namespace: tekton-pipelines
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: tekton-pipelines-webhook
  namespace: tekton-pipelines

---
# Copyright 2019 The Tekton Authors
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: rbac.authorization.k8s.io/v1beta1
kind: ClusterRoleBinding
metadata:
  name: tekton-pipelines-controller-cluster-access
subjects:
- kind: ServiceAccount
  name: tekton-pipelines-controller
  namespace: tekton-pipelines
roleRef:
  kind: ClusterRole
  name: tekton-pipelines-controller-cluster-access
  apiGroup: rbac.authorization.k8s.io
---
# If this ClusterRoleBinding is replaced with a RoleBinding
# then the ClusterRole would be namespaced. The access described by
# the tekton-pipelines-controller-tenant-access ClusterRole would
# be scoped to individual tenant namespaces.
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: ClusterRoleBinding
metadata:
  name: tekton-pipelines-controller-tenant-access
subjects:
- kind: ServiceAccount
  name: tekton-pipelines-controller
  namespace: tekton-pipelines
roleRef:
  kind: ClusterRole
  name: tekton-pipelines-controller-tenant-access
  apiGroup: rbac.authorization.k8s.io
---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: ClusterRoleBinding
metadata:
  name: tekton-pipelines-webhook-cluster-access
subjects:
- kind: ServiceAccount
  name: tekton-pipelines-webhook
  namespace: tekton-pipelines
roleRef:
  kind: ClusterRole
  name: tekton-pipelines-webhook-cluster-access
  apiGroup: rbac.authorization.k8s.io

---
# Copyright 2020 The Tekton Authors
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: rbac.authorization.k8s.io/v1beta1
kind: RoleBinding
metadata:
  name: tekton-pipelines-controller
  namespace: tekton-pipelines
subjects:
- kind: ServiceAccount
  name: tekton-pipelines-controller
  namespace: tekton-pipelines
roleRef:
  kind: Role
  name: tekton-pipelines-controller
  apiGroup: rbac.authorization.k8s.io
---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: RoleBinding
metadata:
  name: tekton-pipelines-webhook
  namespace: tekton-pipelines
subjects:
- kind: ServiceAccount
  name: tekton-pipelines-webhook
  namespace: tekton-pipelines
roleRef:
  kind: Role
  name: tekton-pipelines-webhook
  apiGroup: rbac.authorization.k8s.io

---
# Copyright 2019 The Tekton Authors
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     https://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
  name: clustertasks.tekton.dev
  labels:
    pipeline.tekton.dev/release: "devel"
    version: "devel"
spec:
  group: tekton.dev
  preserveUnknownFields: false
  validation:
    openAPIV3Schema:
      type: object
      # One can use x-kubernetes-preserve-unknown-fields: true
      # at the root of the schema (and inside any properties, additionalProperties)
      # to get the traditional CRD behaviour that nothing is pruned, despite
      # setting spec.preserveUnknownProperties: false.
      #
      # See https://kubernetes.io/blog/2019/06/20/crd-structural-schema/
      # See issue: https://github.com/knative/serving/issues/912
      x-kubernetes-preserve-unknown-fields: true
  versions:
  - name: v1alpha1
    served: true
    storage: true
  - name: v1beta1
    served: true
    storage: false
  names:
    kind: ClusterTask
    plural: clustertasks
    categories:
    - tekton
    - tekton-pipelines
  scope: Cluster
  # Opt into the status subresource so metadata.generation
  # starts to increment
  subresources:
    status: {}
  conversion:
    strategy: Webhook
    webhookClientConfig:
      service:
        name: tekton-pipelines-webhook
        namespace: tekton-pipelines

---
# Copyright 2019 The Tekton Authors
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     https://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
  name: conditions.tekton.dev
  labels:
    pipeline.tekton.dev/release: "devel"
    version: "devel"
spec:
  group: tekton.dev
  names:
    kind: Condition
    plural: conditions
    categories:
    - tekton
    - tekton-pipelines
  scope: Namespaced
  # Opt into the status subresource so metadata.generation
  # starts to increment
  subresources:
    status: {}
  version: v1alpha1

---
# Copyright 2018 The Knative Authors
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     https://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
  name: images.caching.internal.knative.dev
  labels:
    knative.dev/crd-install: "true"
spec:
  group: caching.internal.knative.dev
  version: v1alpha1
  names:
    kind: Image
    plural: images
    singular: image
    categories:
    - knative-internal
    - caching
    shortNames:
    - img
  scope: Namespaced
  subresources:
    status: {}

---
# Copyright 2019 The Tekton Authors
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     https://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
  name: pipelines.tekton.dev
  labels:
    pipeline.tekton.dev/release: "devel"
    version: "devel"
spec:
  group: tekton.dev
  preserveUnknownFields: false
  validation:
    openAPIV3Schema:
      type: object
      # One can use x-kubernetes-preserve-unknown-fields: true
      # at the root of the schema (and inside any properties, additionalProperties)
      # to get the traditional CRD behaviour that nothing is pruned, despite
      # setting spec.preserveUnknownProperties: false.
      #
      # See https://kubernetes.io/blog/2019/06/20/crd-structural-schema/
      # See issue: https://github.com/knative/serving/issues/912
      x-kubernetes-preserve-unknown-fields: true
  versions:
  - name: v1alpha1
    served: true
    storage: true
  - name: v1beta1
    served: true
    storage: false
  names:
    kind: Pipeline
    plural: pipelines
    categories:
    - tekton
    - tekton-pipelines
  scope: Namespaced
  # Opt into the status subresource so metadata.generation
  # starts to increment
  subresources:
    status: {}
  conversion:
    strategy: Webhook
    webhookClientConfig:
      service:
        name: tekton-pipelines-webhook
        namespace: tekton-pipelines

---
# Copyright 2019 The Tekton Authors
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     https://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
  name: pipelineruns.tekton.dev
  labels:
    pipeline.tekton.dev/release: "devel"
    version: "devel"
spec:
  group: tekton.dev
  preserveUnknownFields: false
  validation:
    openAPIV3Schema:
      type: object
      # One can use x-kubernetes-preserve-unknown-fields: true
      # at the root of the schema (and inside any properties, additionalProperties)
      # to get the traditional CRD behaviour that nothing is pruned, despite
      # setting spec.preserveUnknownProperties: false.
      #
      # See https://kubernetes.io/blog/2019/06/20/crd-structural-schema/
      # See issue: https://github.com/knative/serving/issues/912
      x-kubernetes-preserve-unknown-fields: true
  versions:
  - name: v1alpha1
    served: true
    storage: true
  - name: v1beta1
    served: true
    storage: false
  names:
    kind: PipelineRun
    plural: pipelineruns
    categories:
    - tekton
    - tekton-pipelines
    shortNames:
    - pr
    - prs
  scope: Namespaced
  additionalPrinterColumns:
  - name: Succeeded
    type: string
    JSONPath: ".status.conditions[?(@.type==\"Succeeded\")].status"
  - name: Reason
    type: string
    JSONPath: ".status.conditions[?(@.type==\"Succeeded\")].reason"
  - name: StartTime
    type: date
    JSONPath: .status.startTime
  - name: CompletionTime
    type: date
    JSONPath: .status.completionTime
  # Opt into the status subresource so metadata.generation
  # starts to increment
  subresources:
    status: {}
  conversion:
    strategy: Webhook
    webhookClientConfig:
      service:
        name: tekton-pipelines-webhook
        namespace: tekton-pipelines

---
# Copyright 2019 The Tekton Authors
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     https://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
  name: pipelineresources.tekton.dev
  labels:
    pipeline.tekton.dev/release: "devel"
    version: "devel"
spec:
  group: tekton.dev
  names:
    kind: PipelineResource
    plural: pipelineresources
    categories:
    - tekton
    - tekton-pipelines
  scope: Namespaced
  # Opt into the status subresource so metadata.generation
  # starts to increment
  subresources:
    status: {}
  version: v1alpha1

---
# Copyright 2019 The Tekton Authors
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     https://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
  name: tasks.tekton.dev
  labels:
    pipeline.tekton.dev/release: "devel"
    version: "devel"
spec:
  group: tekton.dev
  preserveUnknownFields: false
  validation:
    openAPIV3Schema:
      type: object
      # One can use x-kubernetes-preserve-unknown-fields: true
      # at the root of the schema (and inside any properties, additionalProperties)
      # to get the traditional CRD behaviour that nothing is pruned, despite
      # setting spec.preserveUnknownProperties: false.
      #
      # See https://kubernetes.io/blog/2019/06/20/crd-structural-schema/
      # See issue: https://github.com/knative/serving/issues/912
      x-kubernetes-preserve-unknown-fields: true
  versions:
  - name: v1alpha1
    served: true
    storage: true
  - name: v1beta1
    served: true
    storage: false
  names:
    kind: Task
    plural: tasks
    categories:
    - tekton
    - tekton-pipelines
  scope: Namespaced
  # Opt into the status subresource so metadata.generation
  # starts to increment
  subresources:
    status: {}
  conversion:
    strategy: Webhook
    webhookClientConfig:
      service:
        name: tekton-pipelines-webhook
        namespace: tekton-pipelines

---
# Copyright 2019 The Tekton Authors
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     https://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
  name: taskruns.tekton.dev
  labels:
    pipeline.tekton.dev/release: "devel"
    version: "devel"
spec:
  group: tekton.dev
  preserveUnknownFields: false
  validation:
    openAPIV3Schema:
      type: object
      # One can use x-kubernetes-preserve-unknown-fields: true
      # at the root of the schema (and inside any properties, additionalProperties)
      # to get the traditional CRD behaviour that nothing is pruned, despite
      # setting spec.preserveUnknownProperties: false.
      #
      # See https://kubernetes.io/blog/2019/06/20/crd-structural-schema/
      # See issue: https://github.com/knative/serving/issues/912
      x-kubernetes-preserve-unknown-fields: true
  versions:
  - name: v1alpha1
    served: true
    storage: true
  - name: v1beta1
    served: true
    storage: false
  names:
    kind: TaskRun
    plural: taskruns
    categories:
    - tekton
    - tekton-pipelines
    shortNames:
    - tr
    - trs
  scope: Namespaced
  additionalPrinterColumns:
  - name: Succeeded
    type: string
    JSONPath: ".status.conditions[?(@.type==\"Succeeded\")].status"
  - name: Reason
    type: string
    JSONPath: ".status.conditions[?(@.type==\"Succeeded\")].reason"
  - name: StartTime
    type: date
    JSONPath: .status.startTime
  - name: CompletionTime
    type: date
    JSONPath: .status.completionTime
  # Opt into the status subresource so metadata.generation
  # starts to increment
  subresources:
    status: {}
  conversion:
    strategy: Webhook
    webhookClientConfig:
      service:
        name: tekton-pipelines-webhook
        namespace: tekton-pipelines

---
# Copyright 2020 The Tekton Authors
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     https://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: v1
kind: Secret
metadata:
  name: webhook-certs
  namespace: tekton-pipelines
  labels:
    pipeline.tekton.dev/release: devel
# The data is populated at install time.
---
apiVersion: admissionregistration.k8s.io/v1beta1
kind: ValidatingWebhookConfiguration
metadata:
  name: validation.webhook.pipeline.tekton.dev
  labels:
    pipeline.tekton.dev/release: devel
webhooks:
- admissionReviewVersions:
  - v1beta1
  clientConfig:
    service:
      name: tekton-pipelines-webhook
      namespace: tekton-pipelines
  failurePolicy: Fail
  sideEffects: None
  name: validation.webhook.pipeline.tekton.dev
---
apiVersion: admissionregistration.k8s.io/v1beta1
kind: MutatingWebhookConfiguration
metadata:
  name: webhook.pipeline.tekton.dev
  labels:
    pipeline.tekton.dev/release: devel
webhooks:
- admissionReviewVersions:
  - v1beta1
  clientConfig:
    service:
      name: tekton-pipelines-webhook
      namespace: tekton-pipelines
  failurePolicy: Fail
  sideEffects: None
  name: webhook.pipeline.tekton.dev
---
apiVersion: admissionregistration.k8s.io/v1beta1
kind: ValidatingWebhookConfiguration
metadata:
  name: config.webhook.pipeline.tekton.dev
  labels:
    pipeline.tekton.dev/release: devel
webhooks:
- admissionReviewVersions:
  - v1beta1
  clientConfig:
    service:
      name: tekton-pipelines-webhook
      namespace: tekton-pipelines
  failurePolicy: Fail
  sideEffects: None
  name: config.webhook.pipeline.tekton.dev
  namespaceSelector:
    matchExpressions:
    - key: pipeline.tekton.dev/release
      operator: Exists

---
# Copyright 2019 The Tekton Authors
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     https://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: tekton-aggregate-edit
  labels:
    rbac.authorization.k8s.io/aggregate-to-edit: "true"
    rbac.authorization.k8s.io/aggregate-to-admin: "true"
rules:
- apiGroups:
  - tekton.dev
  resources:
  - tasks
  - taskruns
  - pipelines
  - pipelineruns
  - pipelineresources
  - conditions
  verbs:
  - create
  - delete
  - deletecollection
  - get
  - list
  - patch
  - update
  - watch

---
# Copyright 2019 The Tekton Authors
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     https://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: tekton-aggregate-view
  labels:
    rbac.authorization.k8s.io/aggregate-to-view: "true"
rules:
- apiGroups:
  - tekton.dev
  resources:
  - tasks
  - taskruns
  - pipelines
  - pipelineruns
  - pipelineresources
  - conditions
  verbs:
  - get
  - list
  - watch

---
# Copyright 2019 The Tekton Authors
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     https://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: v1
kind: ConfigMap
metadata:
  name: config-artifact-bucket
  namespace: tekton-pipelines
#  data:
#    # location of the gcs bucket to be used for artifact storage
#    location: "gs://bucket-name"
#    # name of the secret that will contain the credentials for the service account
#    # with access to the bucket
#    bucket.service.account.secret.name:
#    # The key in the secret with the required service account json
#    bucket.service.account.secret.key:

---
# Copyright 2019 The Tekton Authors
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     https://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: v1
kind: ConfigMap
metadata:
  name: config-artifact-pvc
  namespace: tekton-pipelines
# data:
#   # size of the PVC volume
#   size: 5Gi
#
#   # storage class of the PVC volume
#   storageClassName: storage-class-name

---
# Copyright 2019 The Tekton Authors
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     https://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: v1
kind: ConfigMap
metadata:
  name: config-defaults
  namespace: tekton-pipelines
data:
  _example: |-
    ################################
    #                              #
    #    EXAMPLE CONFIGURATION     #
    #                              #
    ################################

    # This block is not actually functional configuration,
    # but serves to illustrate the available configuration
    # options and document them in a way that is accessible
    # to users that `kubectl edit` this config map.
    #
    # These sample configuration options may be copied out of
    # this example block and unindented to be in the data block
    # to actually change the configuration.

    # default-timeout-minutes contains the default number of
    # minutes to use for TaskRun and PipelineRun, if none is specified.
    default-timeout-minutes: "60"  # 60 minutes

    # default-service-account contains the default service account name
    # to use for TaskRun and PipelineRun, if none is specified.
    default-service-account: "default"

    # default-managed-by-label-value contains the default value given to the
    # "app.kubernetes.io/managed-by" label applied to all Pods created for
    # TaskRuns. If a user's requested TaskRun specifies another value for this
    # label, the user's request supercedes.
    default-managed-by-label-value: "tekton-pipelines"

    # default-pod-template contains the default pod template to use
    # TaskRun and PipelineRun, if none is specified. If a pod template
    # is specified, the default pod template is ignored.
    # default-pod-template:

---
# Copyright 2019 The Tekton Authors
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     https://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: v1
kind: ConfigMap
metadata:
  name: feature-flags
  namespace: tekton-pipelines
data:
  # Setting this flag to "true" will prevent Tekton overriding your
  # Task container's $HOME environment variable.
  #
  # The default behaviour currently is for Tekton to override the
  # $HOME environment variable but this will change in an upcoming
  # release.
  #
  # See https://github.com/tektoncd/pipeline/issues/2013 for more
  # info.
  disable-home-env-overwrite: "false"
  # Setting this flag to "true" will prevent Tekton overriding your
  # Task container's working directory.
  #
  # The default behaviour currently is for Tekton to override the
  # working directory if not set by the user but this will change
  # in an upcoming release.
  #
  # See https://github.com/tektoncd/pipeline/issues/1836 for more
  # info.
  disable-working-directory-overwrite: "false"

---
# Copyright 2020 Tekton Authors LLC
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     https://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: v1
kind: ConfigMap
metadata:
  name: config-leader-election
  namespace: tekton-pipelines
data:
  # An inactive but valid configuration follows; see example.
  resourceLock: "leases"
  leaseDuration: "15s"
  renewDeadline: "10s"
  retryPeriod: "2s"

---
# Copyright 2019 Tekton Authors LLC
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     https://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: v1
kind: ConfigMap
metadata:
  name: config-logging
  namespace: tekton-pipelines
data:
  # Common configuration for all knative codebase
  zap-logger-config: |
    {
      "level": "info",
      "development": false,
      "sampling": {
        "initial": 100,
        "thereafter": 100
      },
      "outputPaths": ["stdout"],
      "errorOutputPaths": ["stderr"],
      "encoding": "json",
      "encoderConfig": {
        "timeKey": "",
        "levelKey": "level",
        "nameKey": "logger",
        "callerKey": "caller",
        "messageKey": "msg",
        "stacktraceKey": "stacktrace",
        "lineEnding": "",
        "levelEncoder": "",
        "timeEncoder": "",
        "durationEncoder": "",
        "callerEncoder": ""
      }
    }
  # Log level overrides
  loglevel.controller: "info"
  loglevel.webhook: "info"

---
# Copyright 2019 The Tekton Authors
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     https://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: v1
kind: ConfigMap
metadata:
  name: config-observability
  namespace: tekton-pipelines
data:
  _example: |
    ################################
    #                              #
    #    EXAMPLE CONFIGURATION     #
    #                              #
    ################################

    # This block is not actually functional configuration,
    # but serves to illustrate the available configuration
    # options and document them in a way that is accessible
    # to users that `kubectl edit` this config map.
    #
    # These sample configuration options may be copied out of
    # this example block and unindented to be in the data block
    # to actually change the configuration.

    # metrics.backend-destination field specifies the system metrics destination.
    # It supports either prometheus (the default) or stackdriver.
    # Note: Using Stackdriver will incur additional charges.
    metrics.backend-destination: prometheus

    # metrics.stackdriver-project-id field specifies the Stackdriver project ID. This
    # field is optional. When running on GCE, application default credentials will be
    # used and metrics will be sent to the cluster's project if this field is
    # not provided.
    metrics.stackdriver-project-id: "<your stackdriver project id>"

    # metrics.allow-stackdriver-custom-metrics indicates whether it is allowed
    # to send metrics to Stackdriver using "global" resource type and custom
    # metric type. Setting this flag to "true" could cause extra Stackdriver
    # charge.  If metrics.backend-destination is not Stackdriver, this is
    # ignored.
    metrics.allow-stackdriver-custom-metrics: "false"

---
# Copyright 2019 The Tekton Authors
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: apps/v1
kind: Deployment
metadata:
  name: tekton-pipelines-controller
  namespace: tekton-pipelines
  labels:
    app.kubernetes.io/name: tekton-pipelines
    app.kubernetes.io/component: controller
    pipeline.tekton.dev/release: "v0.12.0"
    version: "v0.12.0"
spec:
  replicas: 1
  selector:
    matchLabels:
      app: tekton-pipelines-controller
  template:
    metadata:
      annotations:
        cluster-autoscaler.kubernetes.io/safe-to-evict: "false"
      labels:
        app: tekton-pipelines-controller
        app.kubernetes.io/name: tekton-pipelines
        app.kubernetes.io/component: controller
        # tekton.dev/release value replaced with inputs.params.versionTag in pipeline/tekton/publish.yaml
        pipeline.tekton.dev/release: "v0.12.0"
        version: "v0.12.0"
    spec:
      serviceAccountName: tekton-pipelines-controller
      containers:
      - name: tekton-pipelines-controller
        image: xianchao/tekton-controller:v0.12.0
        args: [
          # These images are built on-demand by `ko resolve` and are replaced
          # by image references by digest.
          "-kubeconfig-writer-image", "xianchao/tekton-kubeconfigwriter:v0.12.0",
          "-creds-image", "xianchao/tekton-creds-init:v0.12.0",
          "-git-image", "xianchao/tekton-git-init:v0.12.0",
          "-entrypoint-image", "xianchao/tekton-entrypoint:v0.12.0",
          "-imagedigest-exporter-image", "xianchao/tekton-imagedigestexporter:v0.12.0",
          "-pr-image", "xianchao/tekton-pullrequest-init:v0.12.0",
          "-build-gcs-fetcher-image", "xianchao/tekton-gcs-fetcher:v0.12.0",
          # These images are pulled from Dockerhub, by digest, as of April 15, 2020.
          "-nop-image", "xianchao/tianon:v1.0",
          "-shell-image", "xianchao/busybox:v1.0",
          "-gsutil-image", "google/cloud-sdk"]
        volumeMounts:
        - name: config-logging
          mountPath: /etc/config-logging
        env:
        - name: SYSTEM_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        - # If you are changing these names, you will also need to update
          # the controller's Role in 200-role.yaml to include the new
          # values in the "configmaps" "get" rule.
          name: CONFIG_LOGGING_NAME
          value: config-logging
        - name: CONFIG_OBSERVABILITY_NAME
          value: config-observability
        - name: CONFIG_ARTIFACT_BUCKET_NAME
          value: config-artifact-bucket
        - name: CONFIG_ARTIFACT_PVC_NAME
          value: config-artifact-pvc
        - name: CONFIG_FEATURE_FLAGS_NAME
          value: feature-flags
        - name: CONFIG_LEADERELECTION_NAME
          value: config-leader-election
        - name: METRICS_DOMAIN
          value: tekton.dev/pipeline
      volumes:
      - name: config-logging
        configMap:
          name: config-logging
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: tekton-pipelines-controller
    pipeline.tekton.dev/release: "v0.12.0"
    version: "v0.12.0"
  name: tekton-pipelines-controller
  namespace: tekton-pipelines
spec:
  ports:
  - name: http-metrics
    port: 9090
    protocol: TCP
    targetPort: 9090
  selector:
    app: tekton-pipelines-controller

---
# Copyright 2019 The Tekton Authors
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     https://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: apps/v1
kind: Deployment
metadata:
  # Note: the Deployment name must be the same as the Service name specified in
  # config/400-webhook-service.yaml. If you change this name, you must also
  # change the value of WEBHOOK_SERVICE_NAME below.
  name: tekton-pipelines-webhook
  namespace: tekton-pipelines
  labels:
    app.kubernetes.io/name: tekton-pipelines
    app.kubernetes.io/component: webhook-controller
    pipeline.tekton.dev/release: "v0.12.0"
    version: "v0.12.0"
spec:
  replicas: 1
  selector:
    matchLabels:
      app: tekton-pipelines-webhook
      role: webhook
  template:
    metadata:
      annotations:
        cluster-autoscaler.kubernetes.io/safe-to-evict: "false"
      labels:
        app: tekton-pipelines-webhook
        role: webhook
        app.kubernetes.io/name: tekton-pipelines
        app.kubernetes.io/component: webhook-controller
        pipeline.tekton.dev/release: "v0.12.0"
        version: "v0.12.0"
    spec:
      serviceAccountName: tekton-pipelines-webhook
      containers:
      - name: webhook
        # This is the Go import path for the binary that is containerized
        # and substituted here.
        image:  xianchao/tekton-webhook:v0.12.0
        env:
        - name: SYSTEM_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        - # If you are changing these names, you will also need to update
          # the webhook's Role in 200-role.yaml to include the new
          # values in the "configmaps" "get" rule.
          name: CONFIG_LOGGING_NAME
          value: config-logging
        - name: CONFIG_OBSERVABILITY_NAME
          value: config-observability
        - name: CONFIG_LEADERELECTION_NAME
          value: config-leader-election
        - name: WEBHOOK_SERVICE_NAME
          value: tekton-pipelines-webhook
        - name: WEBHOOK_SECRET_NAME
          value: webhook-certs
        - name: METRICS_DOMAIN
          value: tekton.dev/pipeline
        securityContext:
          allowPrivilegeEscalation: false
        ports:
        - name: metrics
          containerPort: 9090
        - name: profiling
          containerPort: 8008
        - name: https-webhook
          containerPort: 8443
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: tekton-pipelines-webhook
    role: webhook
    pipeline.tekton.dev/release: v0.12.0
    version: "v0.12.0"
  name: tekton-pipelines-webhook
  namespace: tekton-pipelines
spec:
  ports:
  - # Define metrics and profiling for them to be accessible within service meshes.
    name: http-metrics
    port: 9090
    targetPort: 9090
  - name: http-profiling
    port: 8008
    targetPort: 8008
  - name: https-webhook
    port: 443
    targetPort: 8443
  selector:
    app: tekton-pipelines-webhook
    role: webhook

---

验证资源创建

kubectl get pods -n tekton-pipelines
kubectl get crd
kubectl api-versions

测试Tekton构建CICD流水线

我们测试一个简单的golang程序。应用程序代码，测试及dockerfile文件可在如下地址获取：tekton-demo

创建task任务

tee task-test.yaml <<'EOF'
apiVersion: tekton.dev/v1beta1
kind: Task
metadata:
  name: test
spec:
  resources:
  #resources定义了我们的任务中定义的步骤中需要输入的内容，这里我们的步骤需要 Clone 一个 Git 仓库作为 go test 命令的输入。
  #Tekton 内置了一种 git 资源类型，它会自动将代码仓库 Clone 到 /workspace/$input_name 目录中，由于我们这里输入被命名成 repo，所以代码会被 Clone 到 /workspace/repo 目录下面。然后下面的 steps 就是来定义执行运行测试命令的步骤，这里我们直接在代码的根目录中运行 go test 命令即可，需要注意的是命令和参数需要分别定义。
    inputs:
    - name: repo
      type: git
  steps:
  - name: run-test
    image: golang:1.14-alpine
    imagePullPolicy: IfNotPresent
    workingDir: /workspace/repo
    command: ["go"]
    args: ["test"]
EOF
kubectl apply -f task-test.yaml
kubectl get Task

创建pipelineresource

通过上面步骤定义了一个 Task 任务，但是该任务并不会立即执行。必须创建一个 TaskRun 引用它并提供所有必需输入的数据才行。这里我们就需要将 git 代码库作为输入，必须先创建一个 PipelineResource 对象来定义输入信息：

tee pipelineresource.yaml <<'EOF'
apiVersion: tekton.dev/v1alpha1
kind: PipelineResource
metadata:
  name: xianchao-tekton-example
spec:
  type: git
  params:
    - name: url
      value: https://github.com/luckylucky421/tekton-demo
    - name: revision
      value: master
EOF
kubectl apply -f pipelineresource.yaml
kubectl get PipelineResource

创建taskrun

tee taskrun.yaml <<'EOF'
apiVersion: tekton.dev/v1beta1
kind: TaskRun
metadata:
  name: testrun
spec:
  taskRef:
    name: test
  resources:
    inputs:
    - name: repo
      resourceRef:
        name: xianchao-tekton-example
#通过taskRef引用上面定义的Task和git仓库作为输入，resourceRef也是引用上面定义的PipelineResource资源对象。
EOF
kubectl apply -f taskrun.yaml
kubectl get taskrun
kubectl get pods #可以看到有一个taskrun的pod在运行，任务执行完成后，pod就变成completed状态了
#可以通过kubectl describe命令来查看任务运行的过程，通过kubectl logs查看任务执行结果
kubectl describe po testrun-pod-x9rkn
kubectl logs testrun-pod-x9rkn --all-containers

K8s部署原生的CICD工具Tekton-基于YAML

Tekton

介绍

自动发布流程

术语

安装Tekton

准备镜像和安装文件

验证资源创建

测试Tekton构建CICD流水线

创建task任务

创建pipelineresource

创建taskrun
