SpringCloud项目架构

  1. 有一个SpringCloud项目需要迁移至K8s，该项目采用Eureka注册中心，采用前后端分离框架。

  2. 该项目首页域名为demo.kubeasy.com：

  3. 域名主路径 / 转发至项目的前端

  4. 路径 /receiveapi 转发至网关服务
  5. 其他服务注册至Eureka，由网关服务进行流量转发。

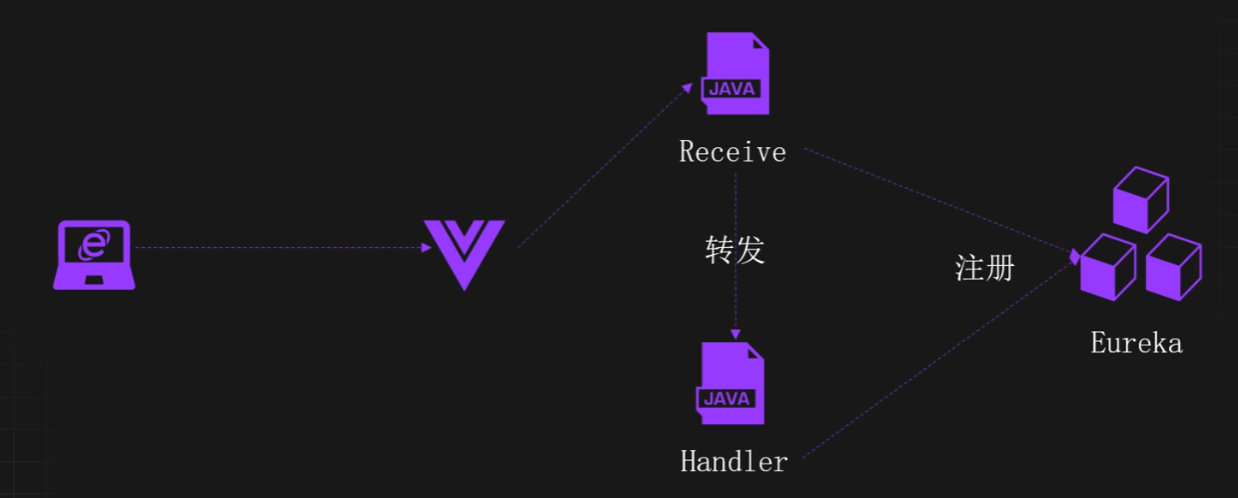

image-20250923104234590

迁移方案

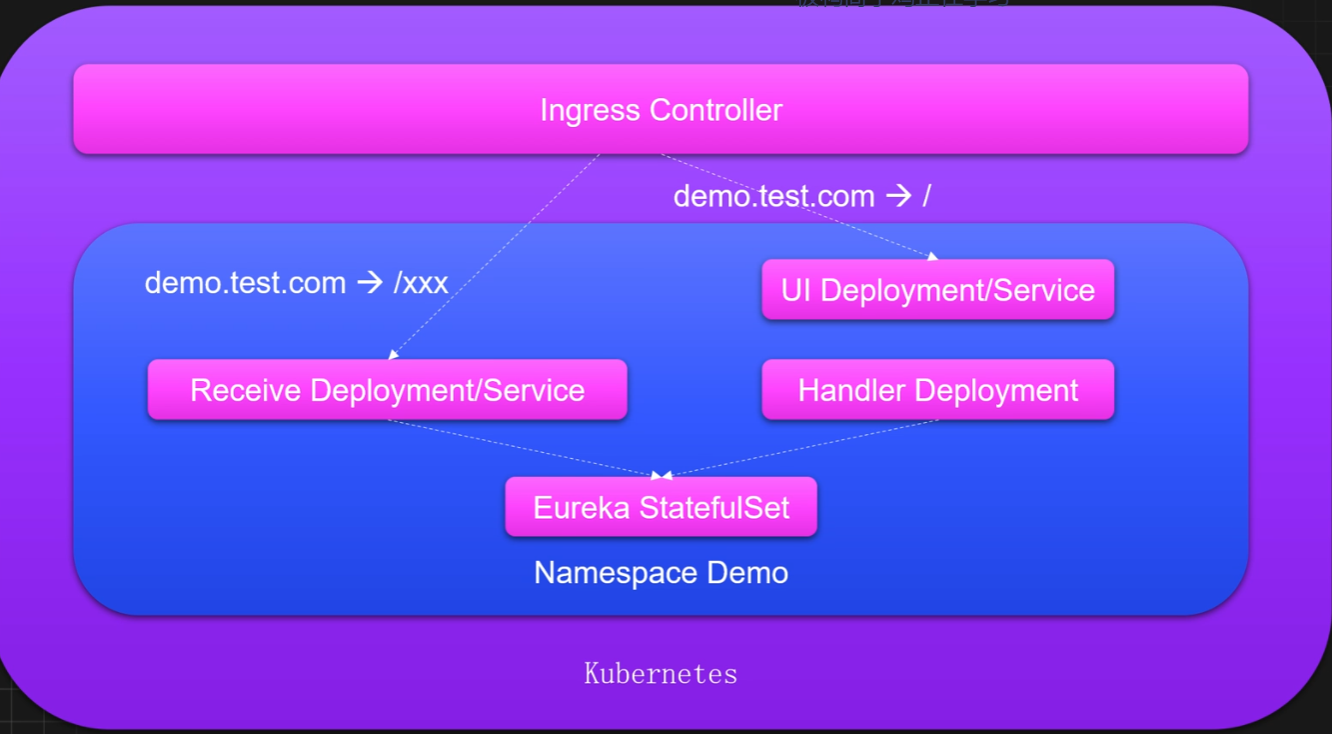

image-20250923103915421

  • Eureka：通过sts部署，最好组成集群

  • Receive：充当网关，负责转发，需要通过ingress暴露域名，因为需要浏览器调用

  • Handler：不需要暴露对外访问，通过receive转发过去的

  • UI：前端服务暴露ingress域名访问。

迁移Eureka集群

  • 代码地址：demo-eureka
  • 构建命令：mvn clean package
  • Java 版本：jdk 1.8
  • 构建镜像：registry.cn-beijing.aliyuncs.com/citools/maven:3.5.3

构建及容器化

# 下载代码
git clone https://gitee.com/dukuan/demo-eureka.git

# 执行构建，用一个maven的docker容器进去构建。
mkdir -p /data/m2
docker run -ti --rm -v `pwd`/demo-eureka:/mnt/ -v /data/m2/:/root/.m2  registry.cn-beijing.aliyuncs.com/citools/maven:3.5.3 bash
cd /mnt
ls
mvn clean package

# 构建完成后查看构建产物
ls target/*.jar

# 制作镜像
cd demo-eureka/

tee Dockerfile <<'EOF'
FROM registry.cn-beijing.aliyuncs.com/dotbalo/jdk:8u211-jmap
WORKDIR /home/tomcat
COPY target/*.jar ./
CMD ["java","-jar","./*.jar"]
EOF

docker build -t demo-eureka:v0.0.1 .

部署至k8s

apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: demo-eureka
  namespace: demo
  labels:
    app: demo-eureka
  annotations:
    app: demo-eureka
spec:
  replicas: 3
  selector:
    matchLabels:
      app: demo-eureka
  template:
    metadata:
      creationTimestamp: null
      labels:
        app: demo-eureka
      annotations:
        app: demo-eureka
    spec:
      serviceName: "demo-eureka"
      podManagementPolicy: Parallel
      containers:
        - name: eureka
          image: registry.cn-beijing.aliyuncs.com/dotbalo/demo-eureka:v0.0.1
          imagePullPolicy: IfNotPresent
          ports:
            - name: http-web
              containerPort: 8761
              protocol: TCP
          env:
            - name: SPRING_PROFILES_ACTIVE
              # 这个值指定了eureka的启动文件。
              # 路径在/src/main/resources下。设置为k8s，就会在这个路径搜寻application-k8s.yaml这个文件作为启动文件
              value: k8s
            - name: SERVER_PORT
              value: '8761'
            - name: EUREKA_SERVER_ADDRESS
              value: >-
                http://demo-eureka-0.demo-eureka:8761/eureka/,http://demo-eureka-1.demo-eureka:8761/eureka/,http://demo-eureka-2.demo-eureka:8761/eureka/
          resources:
            limits:
              cpu: '1'
              memory: 1Gi
            requests:
              cpu: 100m
              memory: 128Mi
---
# headless service
apiVersion: v1
kind: Service
metadata:
  name: demo-eureka
  namespace: demo
  labels:
    app: demo-eureka
  annotations:
    kubeasy.com/autoCreate: 'true'
spec:
  type: ClusterIP
  clusterIP: None
  ports:
  - name: http-web
    protocol: TCP
    port: 8761
    targetPort: 8761
  selector:
    app: demo-eureka
---
# NodePort service
apiVersion: v1
kind: Service
metadata:
  name: demo-eureka-np
  namespace: demo
spec:
  type: NodePort
  ports:
  - name: http-web
    protocol: TCP
    port: 8761
    targetPort: 8761
  selector:
    app: demo-eureka
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: demo-receive
  namespace: demo
  annotations:
    nginx.ingress.kubernetes.io/rewrite-target: /$2
spec:
  ingressClassName: 'nginx-default'
  rules:
  - host: demo.hanxux.local
    http:
      paths:
      - path: /receiveapi(/|$)(.*)
        pathType: ImplementationSpecific
        backend:
          service:
            name: demo-receive
            port:
              number: 8080

迁移网关服务

代码地址：demo-receive

构建命令：mvn clean package

Java 版本：jdk 1.8

构建镜像：registry.cn-beijing.aliyuncs.com/citools/maven:3.5.3

构建及容器化

# 下载代码
git clone https://gitee.com/dukuan/demo-receive.git

# 执行构建
mkdir -p /data/m2
docker run -ti --rm -v `pwd`/demo-receive:/mnt/ -v /data/m2/:/root/.m2  registry.cn-beijing.aliyuncs.com/citools/maven:3.5.3 bash
cd /mnt
mvn clean package

# 查看构建产物
ls target/*.jar

# 制作镜像
cd demo-receive/

tee Dockerfile <<'EOF'
FROM registry.cn-beijing.aliyuncs.com/dotbalo/jdk:8u211-jmap
WORKDIR /home/tomcat
COPY target/*.jar ./
CMD ["java","-jar","./*.jar"]
EOF

docker build -t demo-receive:v0.0.1 .

部署至K8s

apiVersion: apps/v1
kind: Deployment
metadata:
  name: demo-receive
  namespace: demo
  labels:
    app: demo-receive
  annotations:
    app: demo-receive
spec:
  replicas: 1
  selector:
    matchLabels:
      app: demo-receive
  template:
    metadata:
      labels:
        app: demo-receive
      annotations:
        app: demo-receive
    spec:
      restartPolicy: Always
      containers:
        - name: receive
          image: registry.cn-beijing.aliyuncs.com/dotbalo/demo-receive:v0.0.1
          imagePullPolicy: IfNotPresent
          ports:
            - name: http-web
              containerPort: 8080 # 推荐所有后端服务都用8080端口
              protocol: TCP
          env:
            - name: SPRING_PROFILES_ACTIVE
              value: k8s
            - name: SERVER_PORT
              value: '8080'
            - name: EUREKA_SERVER_ADDRESS
              value: >-
                http://demo-eureka-0.demo-eureka:8761/eureka/,http://demo-eureka-1.demo-eureka:8761/eureka/,http://demo-eureka-2.demo-eureka:8761/eureka/
          resources:
            limits:
              cpu: '1'
              memory: 1Gi
            requests:
              cpu: 100m
              memory: 128Mi
---
apiVersion: v1
kind: Service
metadata:
  name: demo-receive
  namespace: demo
  labels:
    app: demo-receive
  annotations:
    kubeasy.com/autoCreate: 'true'
spec:
  ports:
    - name: http-web
      protocol: TCP
      port: 8080
      targetPort: 8080
  selector:
    app: demo-receive
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: demo-receive
  namespace: demo
  annotations:
    nginx.ingress.kubernetes.io/rewrite-target: /$2
spec:
  ingressClassName: 'nginx-default'
  rules:
  - host: demo.hanxux.local
    http:
      paths:
      - path: /receiveapi(/|$)(.*)
        pathType: ImplementationSpecific
        backend:
          service:
            name: demo-receive
            port:
              number: 8080

迁移handler服务

代码地址：demo-handler

构建命令：mvn clean package

Java 版本：jdk 1.8

构建镜像：registry.cn-beijing.aliyuncs.com/citools/maven:3.5.3

构建及容器化

# 下载代码
git clone https://gitee.com/dukuan/demo-handler.git

#构建
mkdir -p /data/m2
docker run -ti --rm -v `pwd`/demo-handler:/mnt/ -v /data/m2/:/root/.m2  registry.cn-beijing.aliyuncs.com/citools/maven:3.5.3 bash
cd /mnt
mvn clean package

# 查看构建产物
ls target/*.jar

# 制作镜像
cd demo-handler/

tee Dockerfile <<'EOF'
FROM registry.cn-beijing.aliyuncs.com/dotbalo/jdk:8u211-jmap
WORKDIR /home/tomcat
COPY target/*.jar ./
CMD ["java","-jar","./*.jar"]
EOF

docker build -t registry.cn-beijing.aliyuncs.com/dotbalo/demo-handler:v0.0.1 .

部署至k8s

apiVersion: apps/v1
kind: Deployment
metadata:
  name: demo-handler
  namespace: demo
  labels:
    app: demo-handler
  annotations:
    app: demo-handler
spec:
replicas: 1
  selector:
    matchLabels:
      app: demo-handler
  template:
    metadata:
      labels:
        app: demo-handler
      annotations:
        app: demo-handler
    spec:
      restartPolicy: Always
      containers:
        - name: handler
          image: registry.cn-beijing.aliyuncs.com/dotbalo/demo-handler:v0.0.1
          imagePullPolicy: Always
          ports:
            - name: http-web
              containerPort: 8080
              protocol: TCP
          env:
            - name: SPRING_PROFILES_ACTIVE
              value: k8s
            - name: SERVER_PORT
              value: '8080'
            - name: EUREKA_SERVER_ADDRESS
              value: >-
                http://demo-eureka-0.demo-eureka:8761/eureka/,http://demo-eureka-1.demo-eureka:8761/eureka/,http://demo-eureka-2.demo-eureka:8761/eureka/
          resources:
            limits:
              cpu: '1'
              memory: 1Gi
            requests:
              cpu: 100m
              memory: 128Mi
          livenessProbe:
            tcpSocket:
              port: 8080
            initialDelaySeconds: 30
            timeoutSeconds: 2
            periodSeconds: 30
            successThreshold: 1
            failureThreshold: 2
          readinessProbe:
            tcpSocket:
              port: 8080
            initialDelaySeconds: 30
            timeoutSeconds: 2
            periodSeconds: 30
            successThreshold: 1
            failureThreshold: 2

迁移前端服务

代码地址：demo-ui

构建命令：npm install --registry=https://registry.npmmirror.com && npm run build

Node版本：16.17+

构建镜像：registry.cn-beijing.aliyuncs.com/dotbalo/node:16.17.0-apline-cnpm

构建及容器化

# 下载代码
git clone https://gitee.com/dukuan/demo-ui.git

# 执行构建：
docker run -ti --rm -v `pwd`/demo-ui:/mnt/ registry.cn-beijing.aliyuncs.com/dotbalo/node:16.17.0-apline-cnpm sh
cd /mnt
npm install -registry=https://registry.npmmirror.com && npm run build

# 构建完成后，查看构建产物：
ls dist/
assets      index.html  vite.svg

# 制作镜像：
cd demo-ui/
tee Dockerfile <<'EOF'
FROM registry.cn-beijing.aliyuncs.com/dotbalo/nginx:1.22.1-alpine3.17
COPY dist /usr/share/nginx/html
EOF

docker build -t demo-ui:v0.0.1 .

部署至k8s

apiVersion: apps/v1
kind: Deployment
metadata:
  name: demo-ui
  namespace: demo
  labels:
    app: demo-ui
  annotations:
    app: demo-ui
spec:
  replicas: 1
  selector:
    matchLabels:
      app: demo-ui
  template:
    metadata:
      labels:
        app: demo-ui
      annotations:
        app: demo-ui
    spec:
      restartPolicy: Always
      containers:
        - name: ui
          image: registry.cn-beijing.aliyuncs.com/dotbalo/demo-ui:v0.0.1
          imagePullPolicy: IfNotPresent
          ports:
            - name: http-web
              containerPort: 80
              protocol: TCP
          resources:
            limits:
              cpu: '1'
              memory: 1Gi
            requests:
              cpu: 100m
              memory: 128Mi
---
kind: Service
metadata:
  name: demo-ui
  namespace: demo
  labels:
    app: demo-ui
  annotations:
    kubeasy.com/autoCreate: 'true'
spec:
  ports:
    - name: http-web
      protocol: TCP
      port: 80
      targetPort: 80
  selector:
    app: demo-ui
  type: ClusterIP
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: demo-ui
  namespace: demo
spec:
  ingressClassName: "nginx-default"
  rules:
    - host: demo.hanxux.local
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: demo-ui
                port:
                  number: 80

迁移过程总结

  1. 容器化：只要有镜像，就能部署到K8s
  2. 确认部署方式（注册中心可能会需要sts部署，有headless svc可供其他pod使用来找到注册中心）
  3. 确认域名配置(暴露对外访问的用ingress，服务发现用service)

SpringCloud云原生架构升级

Eureka作为注册中心，提供的服务发现，k8s就能实现，这涉及到套娃。所以可以去掉Eureka，去中心化，基本无代码侵入。

所有微服务用svc暴露访问即可。比如handler只要创建的svc名字和当前代码中调用的地址相同，就可以无代码侵入的切换。

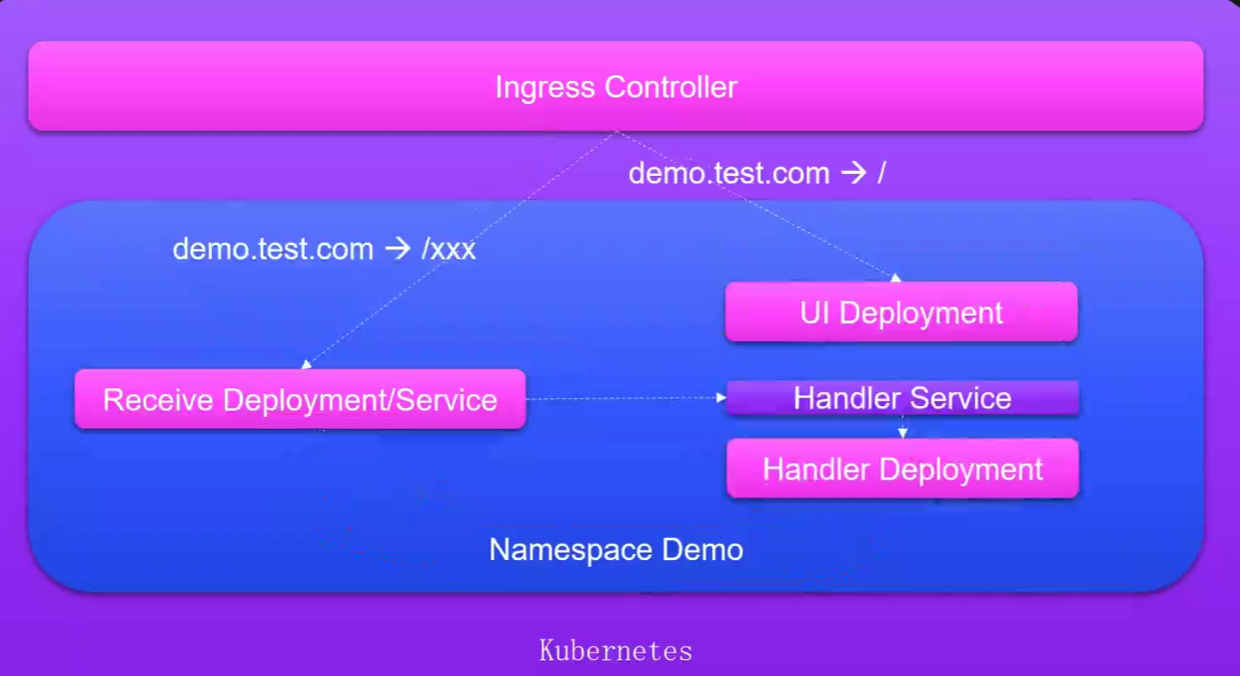

image-20250923171144753

---
apiVersion: v1
kind: Service
metadata:
  name: handler # 因为代码中调用路径就是handler，所以创建一个同名的svc即可实现暴露
  namespace: demo
  labels:
    app: demo-handler
  annotations:
    kubeasy.com/autoCreate: 'true'
spec:
  ports:
  - name: http-web
    protocol: TCP
    port: 8080
    targetPort: 8080
  selector:
    app: demo-handler
  type: ClusterIP

注意：在application-k8s文件里面需要把eureka的配置注释掉，然后重新做镜像部署。否则前端访问会报错。
