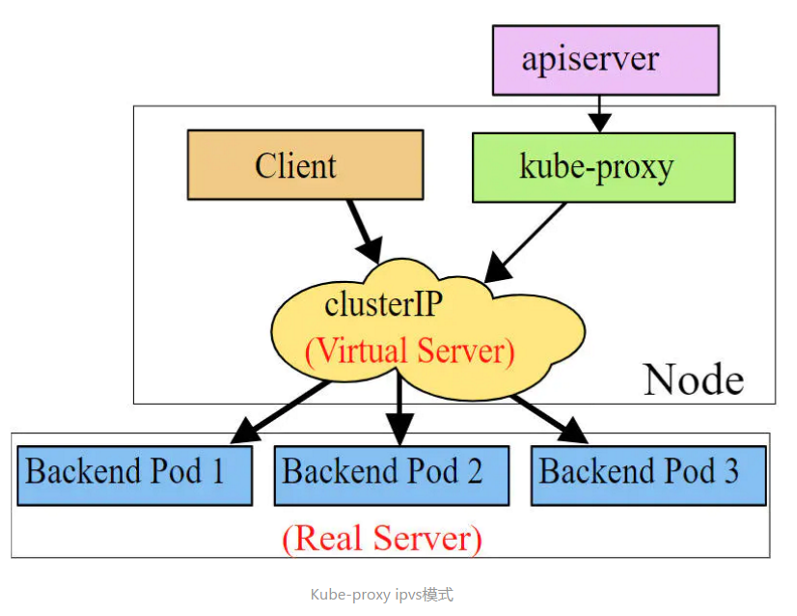

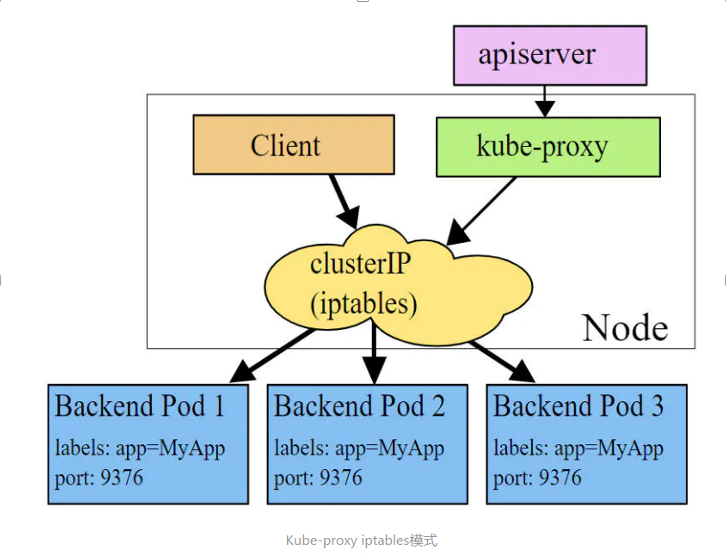

# 查看当前的代理模式：
curl 127.0.0.1:10249/proxyMode
iptables
# 更改 proxy 的代理模式为 ipvs：
kubectl edit cm kube-proxy -n kube-system
# mode更改成"ipvs"
# 二进制安装方式配置文件在每个机器上
#重启 kube-proxy 生效（二进制安装方式使用 systemctl restart kube-proxy）：
kubectl patch daemonset kube-proxy -p
"{\"spec\":{\"template\":{\"metadata\":{\"annotations\":{\"date\":\"`date +'%s'`\"}}}}}" -n kube-system
# 再次查看代理模式：
curl 127.0.0.1:10249/proxyMode
ipvs

# 在机器上查看 ipvs 规则：
yum install ipvsadm -y
ipvsadm -ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
-> RemoteAddress:Port Forward Weight ActiveConn InActConn
TCP 172.16.32.128:32000 rr
-> 172.16.85.217:8443 Masq 1 0 0
TCP 172.16.32.128:32001 rr
-> 192.168.181.141:80 Masq 1 0 0

# 更改代理算法为最小连接数：
kubectl edit cm kube-proxy -n kube-system
# 把ipvs.scheduler字段改成"lc"
# 重启 Proxy：
kubectl patch daemonset kube-proxy -p "{\"spec\":{\"template\":{\"metadata\":{\"annotations\":{\"date\":\"`date +'%s'`\"}}}}}" -n kube-system
# 查看 ipvs 算法：
ipvsadm -ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
-> RemoteAddress:Port Forward Weight ActiveConn InActConn
TCP 172.16.32.128:32000 lc
-> 172.16.85.217:8443 Masq 1 0 0
TCP 172.16.32.128:32001 lc
-> 192.168.181.141:80 Masq 1 0 0

#服务名.命名空间.[域名后缀]
SVC_NAME.NS_NAME.[DOMAIN.LTD.]
#集群默认的域名后缀是svc.cluster.local.
svc_name.ns_name.svc.cluster.local

#在pod里面curl svc的域名
kubectl exec -it dep-nginx-57886b49fb-f2bk2 -- /bin/bash
curl svc-nginx.default.svc.cluster.local

# spec
kubectl explain service.spec

KIND:     Service
VERSION:  v1
RESOURCE: spec <Object>
DESCRIPTION:
     Spec defines the behavior of a service.
     https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#spec-and-status
     ServiceSpec describes the attributes that a user creates on a service.
FIELDS:
   allocateLoadBalancerNodePorts    <boolean>
   clusterIP    <string> #动态分配的地址，也可以自己在创建的时候指定，创建之后就改不了了
   clusterIPs   <[]string>
   externalIPs  <[]string>
   externalName <string>
   externalTrafficPolicy    <string>
   healthCheckNodePort  <integer>
   ipFamilies   <[]string>
   ipFamilyPolicy   <string>
   loadBalancerIP   <string>
   loadBalancerSourceRanges <[]string>
   ports    <[]Object>  #定义service端口，用来和后端pod建立联系
   publishNotReadyAddresses <boolean>
   selector <map[string]string> #通过标签选择器选择关联的pod有哪些
   sessionAffinity  <string>
   sessionAffinityConfig    <Object> #service在实现负载均衡的时候还支持sessionAffinity，会话联系，默认是none，随机调度的（基于iptables规则调度的）；如果我们定义sessionAffinity的client ip，那就表示把来自同一客户端的IP请求调度到同一个pod上
   topologyKeys <[]string>
   type <string>  #定义service的类型

#spec.ports
kubectl explain service.spec.ports

KIND:     Service
VERSION:  v1
RESOURCE: ports <[]Object>
DESCRIPTION:
     The list of ports that are exposed by this service. More info:
     https://kubernetes.io/docs/concepts/services-networking/service/#virtual-ips-and-service-proxies
     ServicePort contains information on service's port.
FIELDS:
   appProtocol  <string>
   name <string>  #定义端口的名字
   nodePort <integer>   #service在物理机映射的端口，默认在 30000-32767 之间
   port <integer> -required-  #service的端口，这个是k8s集群内部服务可访问的端口
   protocol <string>
   targetPort   <string> # targetPort是pod上的端口，从port和nodePort上来的流量，经过kube-proxy流入到后端pod的targetPort上，最后进入容器。

apiVersion: apps/v1
kind: Deployment
metadata:
  name: dep-nginx
spec:
  selector:
    matchLabels:
      run: nginx # 标签要写pod的标签，也就是deployment的选择器匹配的标签，而不是deployment自己的标签。
  replicas: 3
  template:
    metadata:
      labels:
        run: nginx
    spec:
      containers:
      - name: nginx
        image: docker.io/library/nginx:latest
        imagePullPolicy: IfNotPresent
        ports:
        - containerPort: 80  #pod中的容器需要暴露的端口
#---
apiVersion: v1
kind: Service
metadata:
  name: svc-nginx
  labels:
    run: nginx
spec:
  selector:
    run: nginx
  type: ClusterIP
  ports:
  - name: port-svc-nginx
    port: 80 # service 暴露的端口
    protocol: TCP
    targetPort: 80 # pod暴露的端口

#查看node上的ipvs设置的svc的IP和endpoint的对应关系：
ipvsadm -Ln

TCP  10.99.178.109:80 rr
  -> 10.244.184.54:80             Masq    1      0          0
  -> 10.244.184.55:80             Masq    1      0          0
  -> 10.244.190.30:80             Masq    1      0          0

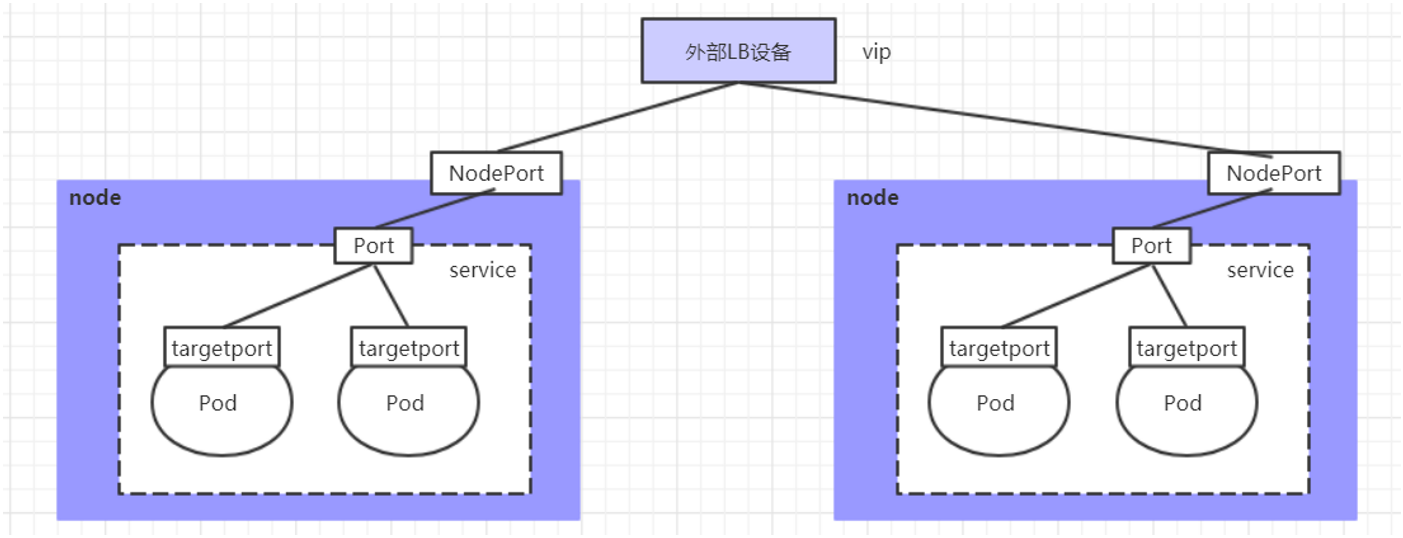

apiVersion: v1
kind: Service
metadata:
  name: svc-nginx-nodeport
  labels:
    run: nginx
spec:
  selector:
    run: nginx
  type: NodePort
  ports:
  - port: 80 #svc端口
    protocol: TCP
    targetPort: 80 # pod端口
    nodePort: 30380 #pod端口映射到物理机的端口

kind: Service
apiVersion: v1
metadata:
  name: my-externalname
spec:
  type: ExternalName
  externalName: www.taobao.com

#  创建 Namespace
kubectl create ns basic-component-dev
kubectl create ns basic-component-uat
#  创建服务
kubectl create deploy redis -n basic-component-dev --image=registry.cn-beijing.aliyuncs.com/dotbalo/redis:7.2.5
kubectl create deploy redis -n basic-component-uat --image=registry.cn-beijing.aliyuncs.com/dotbalo/redis:7.2.5
#  创建 Service
kubectl expose deploy redis --port 6379 -n basic-component-dev
kubectl expose deploy redis --port 6379 -n basic-component-uat

#  创建一个专门用于测试的 Redis 客户端
kubectl create deploy redis-cli --image=registry.cnbeijing.aliyuncs.com/dotbalo/redis:7.2.5
#  测试每个环境的 Redis 基础组件
kubectl exec -ti redis-cli-57cc5fd584-hvxzq -- bash
redis-cli -h redis.basiccomponent-dev
set a dev
get a
redis-cli -h redis.basiccomponent-uat
set a uat
get a

kubectl create ns projecta-dev
kubectl create ns projecta-uat

kind: Service
apiVersion: v1
metadata:
  name: redis
  namespace: projecta-dev
spec:
  type: ExternalName
  externalName: redis.basic-component-dev.svc.cluster.local
---
kind: Service
apiVersion: v1
metadata:
  name: redis
  namespace: projecta-uat
spec:
  type: ExternalName
  externalName: redis.basic-component-uat.svc.cluster.local

kubectl create deploy usercenter --image=registry.cnbeijing.aliyuncs.com/dotbalo/redis:7.2.5 -n projecta-dev
kubectl create deploy usercenter --image=registry.cnbeijing.aliyuncs.com/dotbalo/redis:7.2.5 -n projecta-uat

# DEV环境
kubectl get po -n projecta-dev
kubectl exec -ti usercenter-6685654cc4-pc6m9 -n projecta-dev -- bash
redis-cli -h redis
get a
"dev"
# UAT 环境
kubectl get po -n projecta-uat
kubectl exec -ti usercenter-6685654cc4-m9wrb -n projecta-uat -- bash
redis-cli -h redis
get a
"uat"

yum install mariadb-server.x86_64 -y
systemctl start mariadb

apiVersion: v1
kind: Service
metadata:
  name: svc-mysql
spec:
  type: ClusterIP
  ports:
  - port: 3306
# 这个service没有定义label selector，所以不会生成endpoint

apiVersion: v1
kind: Endpoints
metadata:
  name: svc-mysql # ep的name必须和要手动关联的svc的name相同。
subsets:
- addresses:
  - ip: 192.168.40.5 # 直接写上装了mysql的物理机ip
  ports:
  - port: 3306 #暴露mysql的3306
# ep创建好之后，describe svc会自动关联上ep
# 上面配置就是将外部IP地址和服务引入到k8s集群内部，由service作为一个代理来达到能够访问外部服务的目的。

---
apiVersion: kubeproxy.config.k8s.io/v1alpha1
kind: KubeProxyConfiguration
mode: ipvs

#在所有节点上安装以下：
yum install -y ipset ipvsadm
#所有节点加载内核参数
cat << 'EOF' > /etc/sysconfig/modules/ipvs.modules
#!/bin/bash
ipvs_modules=(ip_vs ip_vs_lc ip_vs_wlc ip_vs_rr ip_vs_wrr ip_vs_lblc ip_vs_lblcr ip_vs_dh ip_vs_sh ip_vs_fo ip_vs_nq
ip_vs_sed ip_vs_ftp nf_conntrack_ipv4)
for kernel_module in ${ipvs_modules[*]}; do
/sbin/modinfo -F filename ${kernel_module} > /dev/null 2>&1
if [ $? -eq 0 ]; then
/sbin/modprobe ${kernel_module}
fi
done
EOF

chmod +x /etc/sysconfig/modules/ipvs.modules
/etc/sysconfig/modules/ipvs.modules

kubectl -n kube-system edit cm kube-proxy
#修改mode字段为"ipvs"
#手动删除kube-proxy pod，自动生成的新pd会拉取新的配置
kubectl -n kube-system get pod -l k8s-app=kube-proxy | grep -v 'NAME' | awk '{print $1}' | xargs kubectl -n kube-system delete pod
#清理iptables防火墙规则
iptables -t filter -F; iptables -t filter -X; iptables -t nat -F; iptables -t nat -X
#修改ipvs模式之后过5-10分钟测试在k8s创建pod是否可以正常访问网络
kubectl run busybox --image busybox:1.28 --restart=Never --rm -it busybox -- sh
