企业级高可用集群架构设计

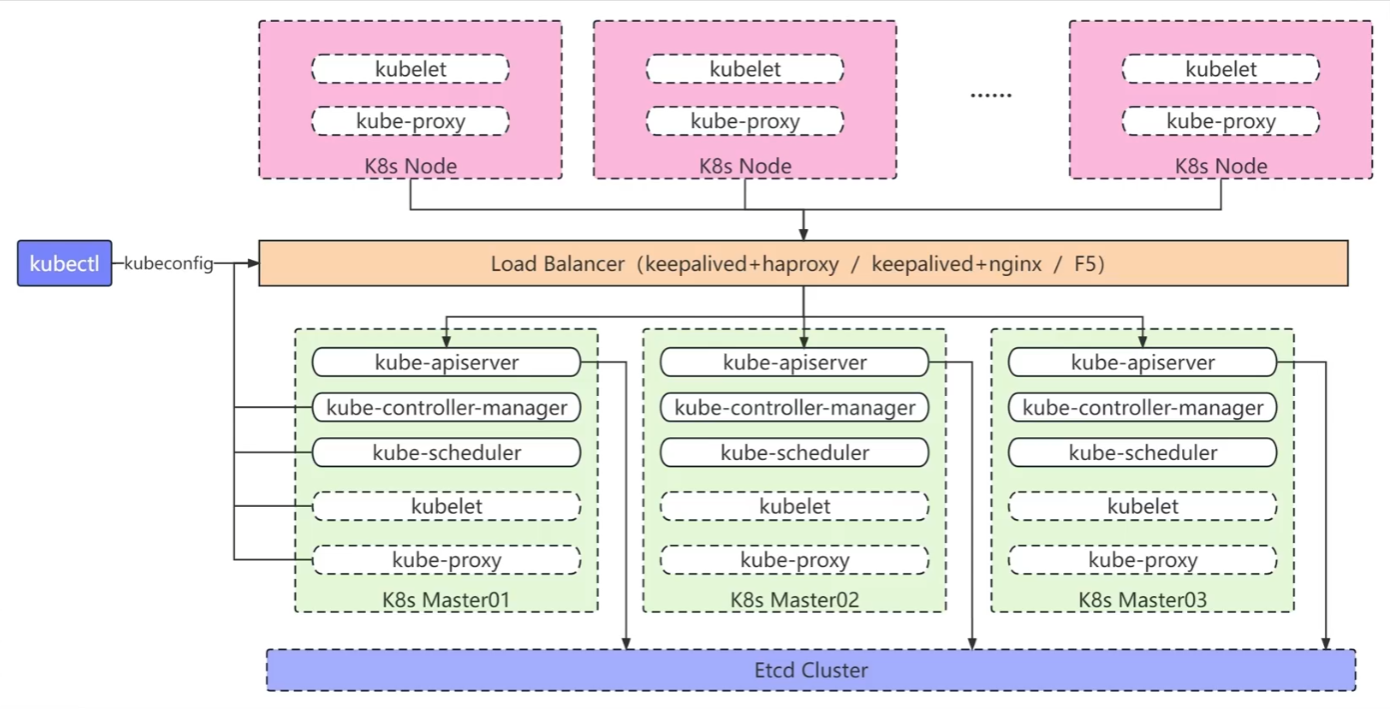

架构图

控制节点:
只要上了生产,一定就是3个,不能是1个。因为后期扩容控制节点会非常麻烦甚至无法扩容。
3 Master已经可以应对95%以上的场景,足够用了,无需再多。
如果前期负载小(10-20个微服务),宁愿没有工作节点,直接部署在master上,后期负载上来再扩工作节点。
控制节点前端负载均衡:
软件负载均衡,可以用keepalived+haproxy/nginx的方案
有硬件支持的话用F5代理,直接代理apiserver的6443端口负载均衡
在公有云上一般不需要keepalived和haproxy,直接用公有云的SLB
工作节点:一开始上3-5个,够用,后面负载高了随时动态扩容。

控制节点资源配置

工作节点数量	控制节点数量	控制节点配置	Etcd节点配置	Master & Etcd	备注
0-100	3	/	/	8C + 32G + 128G SSD 或者:4C + 8G + 128G SSD	1. Etcd和Master部署到一起 2. SSD必备,etcd对硬盘性能要求非常高。对空间要求不高(2万个pod大概也就占20G etcd)
100-250	3	/	/	16C + 32G + 128G SSD	1. 能支撑2万个pod级别 2. Etcd和Master部署到一起也是可以的
250-500	3	16C + 32G	8C + 32G + (512G SSD * 5)		1. Etcd和Master分开部署 2. Etcd拆成5个节点,跨机房部署,容忍挂2个节点

工作节点资源配置

可以理解为无状态的,数量、CPU、内存可以随时扩容。
推荐单节点配置:(8C + 32G) / (16C + 64G)
最低节点数:3个。两个风险太高:如果一个挂了,pod全飘到另一个节点上扛不住。

总之,生产环境搭建集群,最低需要3主3从6个节点。

磁盘划分

控制节点

根分区(100G)	Etcd数据盘(100G NVME SSD)	数据盘(500G SSD)
/	/var/lib/etcd	/data, /var/lib/kubelet, /var/lib/containers
存储系统数据	需要高性能	1. 可以把磁盘分成三个区,分别挂到三个目录 2. 也可以只挂到/data下,创建两个目录软链到kubelet和containers【推荐】

工作节点

根分区(100G)	数据盘(500G SSD)
/	/data, /var/lib/kubelet, /var/lib/containers
	只挂到/data下,创建两个目录软链到kubelet和containers【推荐】

网络划分

网段划分非常重要,属于软件层面的划分,如果划分不合适的话可能需要重建集群。

下面三个网段不能有任何冲突。

	节点网段	Service网段	Pod网段
网段	192.168.40.0/24	10.96.0.0/16	172.16.0.0/16
来源	局域网分配的	CNI插件划分的	controller-manager划分的
备注	一般节点网段都是已经提前划分好的	保留IP: 1. CoreDNS Service IP:10.96.0.10 (svc网段的第10个IP) 2. API Server Service IP:10.96.0.1(svc网段的第1个IP)

注意:

上面三个内网网段可以互相替换。
假如节点网段已经分配172.16,那么可以Pod网段给192.168,svc网段给10.96
假如节点网段已经占了192.168和172.16,那么只能用10.96划分给pod和svc,可以用子网掩码来划分两个子网。一般pod会比svc的ip需求多一些。直接问大模型怎么划分。
注意内网网段是固定有限的:

A类私有地址段:10.0.0.0/8

IP范围:10.0.0.0 - 10.255.255.255

子网掩码:255.0.0.0

可用地址数:约1677万个

B类私有地址段:172.16.0.0/12

IP范围:172.16.0.0 - 172.31.255.255

子网掩码:255.240.0.0

可用地址数:约104万个

C类私有地址段:192.168.0.0/16

IP范围:192.168.0.0 - 192.168.255.255

子网掩码:255.255.0.0

可用地址数:约6.5万个

所以192.0.0.0/16这样的网段,是包含了一部分公网IP的,不能用作k8s网段,会和公网IP冲突。

对于keepalived的VIP:
不能和公司内网IP重复,需要用一个不存在的,并且属于局域网内的IP。提前ping一下,ping不通才能用。
私有云上搭建需要问管理员是否支持VIP。(比如某些Openstack集群可能不支持VIP)

企业级高可用架构落地实战

节点准备

实验用,准备3台VMWare VM作为Master,每台:
4C4G
一块自带的40G硬盘
加一块10G盘,给etcd用
加一块40G盘,作为数据盘
准备2台VM作为Node,每台:
4C4G
一块自带的40G盘
加一块40G盘作为数据盘

fdisk -l # 查看新增磁盘

实验环境规划

主机名	IP	备注
m01~m03	192.168.40.190 ~ 192.168.40.192	master节点*3
n01~n03	192.168.40.193 ~ 192.168.40.195	worker节点*3
/	192.168.40.199	keepalived VIP 注: 1. 不能和公司内网IP重复,需要用一个不存在的,并且属于局域网内的IP。提前ping一下,ping不通才能用。 2. 私有云上搭建需要问管理员是否支持VIP

配置信息	备注
OS Version	Rocky Linux 9
containerd	latest
kubernetes	1.17+都适用。注意:生产环境建议用小版本>5的,比如1.28.5以后才建议用于生产环境
Pod网段	172.16.0.0/16
Service网段	10.96.0.0/16

节点磁盘挂载

实验中都用fdisk直接分区,也可以用LVM创建逻辑卷来挂载。

挂载etcd数据盘

Master节点才需要这个配置

mkdir -p /var/lib/etcd
# etcd盘可以直接新建分区划给etcd
fdisk /dev/sd
n
p
w

# 格式化
mkfs.xfs /dev/sd

# 持久挂载
blkid /dev/sd

tee -a /etc/fstab <<'EOF'
UUID=xxx    /var/lib/etcd     xfs    defaults    0 0
EOF

systemctl daemon-reload && mount -a
df -Th

挂载data盘

Master和Worker节点都要配置

mkdir -p /data
fdisk /dev/sd
n
p
w

# 格式化
mkfs.xfs /dev/sd

# 持久挂载
blkid /dev/sd

tee -a /etc/fstab <<'EOF'
UUID=xxx    /data    xfs    defaults    0 0
EOF

systemctl daemon-reload && mount -a
df -Th

创建kubelet和containers目录和软链:

mkdir -p /data/kubelet
mkdir -p /data/containers
ln -s /data/kubelet /var/lib/kubelet
ln -s /data/containers /var/lib/containers

基本配置

所有节点更改主机名:

hostnamectl set-hostname m01

所有节点更改hosts

tee -a /etc/hosts <<'EOF'
192.168.40.190   m01
192.168.40.191   m02
192.168.40.192   m03
192.168.40.193   n01
192.168.40.194   n02
192.168.40.195   n03
EOF

所有节点配置默认yum源:

sed -e 's|^mirrorlist=|#mirrorlist=|g' \
    -e 's|^#baseurl=http://dl.rockylinux.org/$contentdir|baseurl=https://mirrors.aliyun.com/rockylinux|g' \
    -i.bak \
    /etc/yum.repos.d/rocky-*.repo

dnf makecache
yum makecache

安装epel源并替换为清华epel源:

dnf install yum-utils
dnf install https://mirrors.tuna.tsinghua.edu.cn/epel/epel-release-latest-9.noarch.rpm
dnf install https://mirrors.tuna.tsinghua.edu.cn/epel/epel-next-release-latest-9.noarch.rpm

sed -e 's|^metalink=|#metalink=|g' \
    -e 's|^#baseurl=|baseurl=|g' \
    -e 's|https\?://download\.fedoraproject\.org/pub/epel|https://mirrors.tuna.tsinghua.edu.cn/epel|g' \
    -e 's|https\?://download\.example/pub/epel|https://mirrors.tuna.tsinghua.edu.cn/epel|g' \
    -i.bak /etc/yum.repos.d/epel{,-testing}.repo

# 禁用 epel-cisco-openh264.repo
sed -i "s/enabled=1/enabled=0/g" /etc/yum.repos.d/epel-cisco-openh264.repo

# 清除并重建缓存
dnf clean all
dnf makecache

由于无法同步,所有 EPEL 镜像站都不包含 EPEL Cisco OpenH264 仓库(epel-cisco-openh264.repo),如果不需要可手动将其改为 enabled=0。

参考文档:在Rocky Linux 9上启用EPEL和Remi仓库

所有节点安装基本软件包:

yum update -y
yum install -y yum-utils device-mapper-persistent-data lvm2 wget net-tools nfs-utils lrzsz gcc gcc-c++ make cmake libxml2-devel openssl-devel curl curl-devel unzip sudo libaio-devel vim ncurses-devel autoconf automake epel-release openssh-server telnet coreutils iputils iproute nmap-ncat jq psmisc git bash-completion rsyslog

所有节点关闭防火墙、selinux、swap、dnsmasq,开启rsyslog:

systemctl disable --now firewalld
systemctl disable --now dnsmasq

setenforce 0
sed -i 's/SELINUX=enforcing/SELINUX=disabled/g' /etc/selinux/config
sed -i 's#SELINUX=enforcing#SELINUX=disabled#g' /etc/sysconfig/selinux

systemctl enable --now rsyslog

swapoff -a && sysctl -w vm.swappiness=0
sed -ri '/^[^#]*swap/s@^@#@' /etc/fstab
systemctl daemon-reload && mount -a

所有节点安装ntpdate:(实际生产使用中发现chrony没有ntpdate可靠)

dnf install -y epel-release
dnf config-manager --set-enabled epel
dnf install ntpsec

所有节点同步时间并配置上海时区:

ln -sf /usr/share/zoneinfo/Asia/Shanghai /etc/localtime
echo 'Asia/Shanghai' > /etc/timezone
ntpdate time2.aliyun.com

# 加入到crontab
crontab -e
*/5 * * * * /usr/sbin/ntpdate time2.aliyun.com

所有节点配置limit:

ulimit -SHn 65535
tee -a /etc/security/limits.conf <<'EOF'
* soft nofile 65536
* hard nofile 131072
* soft nproc 65535
* hard nproc 655350
* soft memlock unlimited
* hard memlock unlimited
EOF

m01免密登录其他节点(安装过程中的各种配置文件均在m01上操作),集群管理也在m01上操作

ssh-keygen -t rsa
for i in m01 m02 m03 n01 n02 n03;do ssh-copy-id -i .ssh/id_rsa.pub $i;done

内核优化

所有节点安装ipvsadm:

yum install -y ipvsadm ipset sysstat conntrack libseccomp

所有节点配置ipvs模块:

modprobe -- ip_vs
modprobe -- ip_vs_rr
modprobe -- ip_vs_wrr
modprobe -- ip_vs_sh
modprobe -- nf_conntrack

所有节点创建/etc/modules-load.d/ipvs.conf,并配置开机自动加载:

tee /etc/modules-load.d/ipvs.conf <<'EOF'
ip_vs
ip_vs_lc
ip_vs_wlc
ip_vs_rr
ip_vs_wrr
ip_vs_lblc
ip_vs_lblcr
ip_vs_dh
ip_vs_sh
ip_vs_fo
ip_vs_nq
ip_vs_sed
ip_vs_ftp
nf_conntrack
ip_tables
ip_set
xt_set
ipt_set
ipt_rpfilter
ipt_REJECT
ipip
EOF

systemctl enable --now systemd-modules-load.service
# 如有报错可以忽略

所有节点内核优化配置:【针对4C4G虚拟机】

cat <<EOF > /etc/sysctl.d/k8s.conf
net.ipv4.ip_forward = 1
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
fs.may_detach_mounts = 1
net.ipv4.conf.all.route_localnet = 1
vm.overcommit_memory = 1
vm.panic_on_oom = 0
fs.inotify.max_user_watches = 89100
fs.file-max = 52706963
fs.nr_open = 52706963
net.netfilter.nf_conntrack_max = 2310720

net.ipv4.tcp_keepalive_time = 600
net.ipv4.tcp_keepalive_probes = 3
net.ipv4.tcp_keepalive_intvl = 15
net.ipv4.tcp_max_tw_buckets = 36000
net.ipv4.tcp_tw_reuse = 1
net.ipv4.tcp_max_orphans = 327680
net.ipv4.tcp_orphan_retries = 3
net.ipv4.tcp_syncookies = 1
net.ipv4.tcp_max_syn_backlog = 16384
net.ipv4.tcp_timestamps = 0
net.core.somaxconn = 16384
EOF

加载新参数:

modprobe br_netfilter
modprobe nf_conntrack
sysctl --system
reboot
# 检查内核模块是否加载
lsmod | grep --color=auto -e ip_vs -e nf_conntrack

高可用组件安装

注意

如果安装的不是高可用集群,不需要安装haproxy和keepalived
公有云上自建集群,用公有云的SLB服务即可代替haproxy和keepalived。因为公有云大多数不支持keepalived VIP漂移

所有master节点上安装:

yum install -y haproxy keepalived

配置haproxy

所有master节点配置haproxy:

mkdir /etc/haproxy
# 清空原配置,添加新配置
tee /etc/haproxy/haproxy.cfg <<'EOF'
global
  maxconn 2000
  ulimit-n 16384
  log 127.0.0.1 local0 err
  stats timeout 30s
defaults
  log global
  mode http
  option httplog
  timeout connect 5000
  timeout client 50000
  timeout server 50000
  timeout http-request 15s
  timeout http-keep-alive 15s

frontend k8s-master
  bind 0.0.0.0:16443
  bind 127.0.0.1:16443
  mode tcp
  option tcplog
  tcp-request inspect-delay 5s
  default_backend k8s-master

backend k8s-master
  mode tcp
  option tcplog
  option tcp-check
  balance roundrobin
  default-server inter 10s downinter 5s rise 2 fail 2 slowstart 60s maxconn 250 maxqueue 256 weight 100
  server k8s-master01  192.168.40.190:6443  check
  server k8s-master02  192.168.40.191:6443  check
  server k8s-master03  192.168.40.192:6443  check
EOF

注意这段配置:

server k8s-master01 192.168.40.190:6443 check
server k8s-master02 192.168.40.191:6443 check
server k8s-master03 192.168.40.192:6443 check

只关心实际IP地址,实际主机名不是k8s-master01也没关系,只要IP地址正确即可

配置keepalived

注意修改三个字段:

interface ens160 # 主机网卡名
mcast_src_ip 192.168.40.130 # 当前节点的IP
virtual_ipaddress {
    192.168.40.199 # VIP的地址
}

Master01配置

mkdir /etc/keepalived
# 清空原配置,添加新配置
tee /etc/keepalived/keepalived.conf <<'EOF'
! Configuration File for keepalived
global_defs {
    router_id LVS_DEVEL
    script_user root
    enable_script_security
}
vrrp_script chk_apiserver {
    script "/etc/keepalived/check_apiserver.sh"
    interval 5
    weight -5
    fall 2
    rise 1
}
vrrp_instance VI_1 {
    state MASTER
    interface ens160
    mcast_src_ip 192.168.40.190
    virtual_router_id 51
    priority 101
    advert_int 2
    authentication {
        auth_type PASS
        auth_pass K8SHA_KA_AUTH
    }
    virtual_ipaddress {
        192.168.40.199
    }
    track_script {
        chk_apiserver
    }
}
EOF

Master02配置

mkdir /etc/keepalived
# 清空原配置,添加新配置
tee /etc/keepalived/keepalived.conf <<'EOF'
! Configuration File for keepalived
global_defs {
    router_id LVS_DEVEL
    script_user root
    enable_script_security
}
vrrp_script chk_apiserver {
    script "/etc/keepalived/check_apiserver.sh"
    interval 5
    weight -5
    fall 2
    rise 1
}
vrrp_instance VI_1 {
    state MASTER
    interface ens160
    mcast_src_ip 192.168.40.191
    virtual_router_id 51
    priority 101
    advert_int 2
    authentication {
        auth_type PASS
        auth_pass K8SHA_KA_AUTH
    }
    virtual_ipaddress {
        192.168.40.199
    }
    track_script {
        chk_apiserver
    }
}
EOF

Master03配置

mkdir /etc/keepalived
# 清空原配置,添加新配置
tee /etc/keepalived/keepalived.conf <<'EOF'
! Configuration File for keepalived
global_defs {
    router_id LVS_DEVEL
    script_user root
    enable_script_security
}
vrrp_script chk_apiserver {
    script "/etc/keepalived/check_apiserver.sh"
    interval 5
    weight -5
    fall 2
    rise 1
}
vrrp_instance VI_1 {
    state MASTER
    interface ens160
    mcast_src_ip 192.168.40.192
    virtual_router_id 51
    priority 101
    advert_int 2
    authentication {
        auth_type PASS
        auth_pass K8SHA_KA_AUTH
    }
    virtual_ipaddress {
        192.168.40.199
    }
    track_script {
        chk_apiserver
    }
}
EOF

健康检查文件

所有Master节点添加keepalived健康检查文件:

tee /etc/keepalived/check_apiserver.sh <<'EOF'
#!/bin/bash
err=0
for k in $(seq 1 3)
do
    check_code=$(pgrep haproxy)
    if [[ $check_code == "" ]]; then
        err=$(expr $err + 1)
        sleep 1
        continue
    else
        err=0
        break
    fi
done

if [[ $err != "0" ]]; then
    echo "systemctl stop keepalived"
    /usr/bin/systemctl stop keepalived
    exit 1
else
    exit 0
fi
EOF

添加权限:

chmod +x /etc/keepalived/check_apiserver.sh

启动服务

所有Master节点启动服务

systemctl daemon-reload
systemctl enable --now haproxy
systemctl enable --now keepalived

测试VIP

所有Master和Worker节点测试VIP:

# ping必须全通
ping 192.168.40.199 -c 4
# telnet端口必须全通:出现 ] 说明是通的
telnet 192.168.40.199 16443

如果ping不通且telnet没有出现 ] ,则认为VIP不通,不可继续安装

需要排查keepalived的问题,比如防火墙和selinux,haproxy和keepalived的状态,监听端口等。排查步骤:

确认VIP是否正确
所有节点查看防火墙状态必须为disable和inactive:systemctl status firewalld
所有节点查看selinux状态,必须为disable:getenforce
master节点查看haproxy和keepalived状态:systemctl status keepalived haproxy
master节点查看监听端口:netstat -lntp

如果以上都没有问题,需要确认:

是否是公有云机器
是否是私有云机器(类似OpenStack)
上述公有云一般都是不支持keepalived,私有云可能也有限制,需要和自己的私有云管理员咨询

快照

完成keepalived测试之后,可以把所有VM关机拍快照。

Runtime安装

如果安装的版本低于1.24,选择Docker和Containerd均可,高于1.24建议选择Containerd作为Runtime,不再推荐使用Docker作为Runtime。

安装docker和containerd

所有节点安装docker和containerd:

yum-config-manager --add-repo https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
yum clean all && yum makecache
yum install docker-ce containerd -y

【可选】启动docker:(可以无需启动Docker,只需要配置和启动Containerd即可)

systemctl enable docker --now
# 配置docker镜像加速器,k8s所有节点均按照以下配置
tee /etc/docker/daemon.json <<'EOF'
{
 "registry-mirrors":["https://docker.m.daocloud.io"]
}
EOF
#重启docker:
systemctl daemon-reload && systemctl restart docker && systemctl status docker

配置containerd

首先配置Containerd所需的模块(所有节点):

cat <<EOF | tee /etc/modules-load.d/containerd.conf
overlay
br_netfilter
EOF

所有节点加载模块:

modprobe -- overlay
modprobe -- br_netfilter

所有节点,配置Containerd所需的内核:

cat <<EOF | tee /etc/sysctl.d/99-kubernetes-cri.conf
net.bridge.bridge-nf-call-iptables  = 1
net.ipv4.ip_forward                 = 1
net.bridge.bridge-nf-call-ip6tables = 1
EOF

所有节点加载内核:

sysctl --system

所有节点生成containerd配置文件:

mkdir -p /etc/containerd
containerd config default | tee /etc/containerd/config.toml

修改containerd配置的pause镜像和Cgroup:

sed -i 's#SystemdCgroup = false#SystemdCgroup = true#g' /etc/containerd/config.toml
sed -i 's#k8s.gcr.io/pause#registry.cn-hangzhou.aliyuncs.com/google_containers/pause#g'  /etc/containerd/config.toml
sed -i 's#registry.gcr.io/pause#registry.cn-hangzhou.aliyuncs.com/google_containers/pause#g'  /etc/containerd/config.toml
sed -i 's#registry.k8s.io/pause#registry.cn-hangzhou.aliyuncs.com/google_containers/pause#g'  /etc/containerd/config.toml

【可选】如果有连接harbor的需求,更改配置文件的这一部分:

    [plugins."io.containerd.grpc.v1.cri".registry]
      config_path = ""

      [plugins."io.containerd.grpc.v1.cri".registry.auths]

      [plugins."io.containerd.grpc.v1.cri".registry.configs]
        [plugins."io.containerd.grpc.v1.cri".registry.configs."harbor.hanxux.local".tls]
            insecure_skip_verify = true
            ca_file = ""
            cert_file = ""
            key_file = ""
        [plugins."io.containerd.grpc.v1.cri".registry.configs."harbor.hanxux.local".auth]
            username = "admin"
            password = "Harbor12345"

      [plugins."io.containerd.grpc.v1.cri".registry.headers]

      [plugins."io.containerd.grpc.v1.cri".registry.mirrors]
         [plugins."io.containerd.grpc.v1.cri".registry.mirrors."harbor.hanxux.local"]
            endpoint = ["http://harbor.hanxux.local"]
          [plugins."io.containerd.grpc.v1.cri".registry.mirrors."docker.io"]
             endpoint = ["https://docker.m.daocloud.io"]

所有节点启动Containerd,并配置开机自启动:

systemctl daemon-reload
systemctl enable --now containerd

【可选】crictl是一个命令行工具,用来验证 CRI 兼容性。若报错没有安装 crictl,可以执行:

VERSION="1.25.0"
curl -L -o /usr/local/bin/crictl "https://github.com/kubernetes-sigs/cri-tools/releases/download/v${VERSION}/crictl-v${VERSION}-linux-amd64.tar.gz"
tar zxvf /usr/local/bin/crictl -C /usr/local/bin
chmod +x /usr/local/bin/crictl

所有节点配置crictl客户端连接的运行时位置:

cat > /etc/crictl.yaml <<EOF
runtime-endpoint: unix:///run/containerd/containerd.sock
image-endpoint: unix:///run/containerd/containerd.sock
timeout: 10
debug: false
EOF

systemctl restart containerd
# 验证配置
containerd --version
crictl info

检查containerd插件情况

ctr plugin ls
# 下面这两项都要是ok才行
io.containerd.snapshotter.v1          overlayfs                linux/amd64    ok
io.containerd.grpc.v1                 cri                      linux/amd64    ok

K8s组件安装

所有节点配置源:注意这里需要更改k8s版本号,只用写minor version,不用写patch版本

cat <<EOF | tee /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes-new/core/stable/v1.33/rpm/
enabled=1
gpgcheck=1
gpgkey=https://mirrors.aliyun.com/kubernetes-new/core/stable/v1.33/rpm/repodata/repomd.xml.key
EOF

所有节点安装kubelet、kubectl、kubeadm:注意版本需要对应k8s版本号

yum clean all && yum makecache
yum install kubeadm-1.33* kubelet-1.33* kubectl-1.33* -y

所有节点开机自启动kubelet:(由于还未初始化,没有kubelet的配置文件,此时kubelet无法启动,无需关心)

systemctl daemon-reload
systemctl enable --now kubelet

【离线安装方法】如果安装报找不到指定的源,可以按照下面的网址,下载指定版本的rpm文件,传到linux机器:
阿里云k8s仓库
阿里云k8s rpm x86_64

基于上面下载到linux机器的rpm文件,手动安装:rpm -ivh ./*

集群初始化

以下操作在Master01节点执行。集群初始化只在master01执行一遍,其余节点都是join过来的。

vim kubeadm-config.yaml

高可用Master节点配置:(v1beta4参数说明)

apiVersion: kubeadm.k8s.io/v1beta4
kind: InitConfiguration
bootstrapTokens:
- groups:
  - system:bootstrappers:kubeadm:default-node-token
  token: 7t2weq.bjbawausm0jaxury
  ttl: 24h0m0s
  usages:
  - signing
  - authentication
localAPIEndpoint:
  advertiseAddress: 192.168.181.130 # master01地址
  bindPort: 6443
nodeRegistration:
  criSocket: unix:///var/run/containerd/containerd.sock
  imagePullPolicy: IfNotPresent
  imagePullSerial: true
  name: m01 # hostname
  taints:
  - effect: NoSchedule
    key: node-role.kubernetes.io/control-plane
timeouts:
  controlPlaneComponentHealthCheck: 4m0s
  discovery: 5m0s
  etcdAPICall: 2m0s
  kubeletHealthCheck: 4m0s
  kubernetesAPICall: 1m0s
  tlsBootstrap: 5m0s
  upgradeManifests: 5m0s
---
apiServer:
  certSANs:
  - 192.168.40.199 # VIP
apiVersion: kubeadm.k8s.io/v1beta4
caCertificateValidityPeriod: 876000h0m0s
certificateValidityPeriod: 876000h0m0s
certificatesDir: /etc/kubernetes/pki
clusterName: kubernetes
controlPlaneEndpoint: 192.168.40.199:16443 # VIP
controllerManager: {}
dns: {}
encryptionAlgorithm: RSA-2048
etcd:
  local:
    dataDir: /var/lib/etcd # 设置为提前挂载好的磁盘位置
imageRepository: registry.cn-hangzhou.aliyuncs.com/google_containers
kind: ClusterConfiguration
kubernetesVersion: v1.33.4 # 要与kubeadm version的patch版本保持一致
networking:
  dnsDomain: cluster.local
  podSubnet: 172.16.0.0/16
  serviceSubnet: 10.96.0.0/16
proxy: {}
scheduler: {}
---
apiVersion: kubeproxy.config.k8s.io/v1alpha1
kind: KubeProxyConfiguration
mode: ipvs
---
apiVersion: kubelet.config.k8s.io/v1beta1
kind: KubeletConfiguration
cgroupDriver: systemd

更新kubeadm文件,把旧版本格式的 kubeadm 配置文件转换成当前版本接受的格式

kubeadm config migrate --old-config kubeadm-config.yaml --new-config kubeadm-config-new.yaml
# 格式转换完,这个字段会被改。进入kubeadm-config-new.yaml文件,修改这个字段:
timeouts:
  controlPlaneComponentHealthCheck: 4m0s

复制到其他master节点:其他节点配置文件不需要更改,包括IP地址也不需要更改

for i in m02 m03; do scp kubeadm-config-new.yaml $i:/root/; done

所有Master节点提前下载镜像,可以节省初始化时间:

kubeadm config images pull --config /root/kubeadm-config-new.yaml

在Master01节点初始化集群,初始化以后会在/etc/kubernetes目录下生成对应的证书和配置文件,之后其他Master节点加入Master01即可:初始化操作仅在master01节点执行,其它任何节点勿操作

# 高可用master节点初始化
kubeadm init --config /root/kubeadm-config-new.yaml --upload-certs --ignore-preflight-errors=SystemVerification
# 单master节点初始化
kubeadm init --config /root/kubeadm-config-new.yaml --ignore-preflight-errors=SystemVerification

初始化成功以后,控制台输出里面,会产生两个join命令,一个是给control plane用,一个是给data node用:

kubeadm join 192.168.40.199:16443 --token xxx \
--discovery-token-ca-cert-hash sha256:xxx \
--control-plane --certificate-key xxx

kubeadm join 192.168.40.199:16443 --token xxx \
    --discovery-token-ca-cert-hash xxx

加入节点

如果join命令没保存,在master01运行:

kubeadm token create --print-join-command

在Master02和03上运行join命令加入集群(用带--control-plane的join命令,后面加上--ignore-preflight-errors=SystemVerification)
在Worker nodes上运行join命令加入集群(用短的join命令,后面加上--ignore-preflight-errors=SystemVerification)

创建kubeconfig

admin.conf是集群的钥匙,安全起见最好是仅在这一台master上执行。如需在其他节点运行,需要拷贝admin.conf到对应节点。

mkdir -p $HOME/.kube
cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
chown $(id -u):$(id -g) $HOME/.kube/config

# 1. 设置kubectl的alias为k:
whereis kubectl ## kubectl: /usr/bin/kubectl
echo "alias k=/usr/bin/kubectl">>/etc/profile
source /etc/profile

# 2. 设置alias的自动补全:
source <(kubectl completion bash | sed 's/kubectl/k/g')

# 3. 解决每次启动k都会失效,要重新刷新环境变量(source /etc/profile)的问题:在~/.bashrc文件中添加以下代码:source /etc/profile
echo "source /etc/profile" >> ~/.bashrc

# 4. 给alias k也配置补全
tee -a ~/.bashrc <<'EOF'
alias k='kubectl'
complete -o default -F __start_kubectl k
source <(kubectl completion bash)
EOF

# 使命令生效
source ~/.bashrc

Worker node打标签

kubectl label nodes node01 node-role.kubernetes.io/work=worker

问题排查

如果初始化失败,使用如下命令重置后再次初始化,命令如下(没有失败不要执行):

kubeadm reset -f ; ipvsadm --clear  ; rm -rf ~/.kube

如果多次尝试都是初始化失败,需要看系统日志,CentOS/RockyLinux日志路径:/var/log/messages,Ubuntu系列日志路径/var/log/syslog:

tail -f /var/log/messages | grep -v "not found"

经常出错的原因:

Containerd的配置文件修改的不对,自行参考《安装containerd》小节核对。(一般伴有PLEG报错信息)
kubeadm yaml配置问题,比如非高可用集群忘记修改16443端口为6443
kubeadm yaml配置问题,三个网段有交叉,出现IP地址冲突
VIP不通导致无法初始化成功,此时messages日志会有VIP超时的报错

安装网络插件Calico

所有节点禁止NetworkManager管理Calico的网络接口,防止有冲突或干扰:

cat >>/etc/NetworkManager/conf.d/calico.conf<<EOF
[keyfile]
unmanaged-devices=interface-name:cali*;interface-name:tunl*;interface-name:vxlan.calico;interface-name:vxlan-v6.calico;interface-name:wireguard.cali;interface-name:wg-v6.cali
EOF

systemctl daemon-reload && systemctl restart NetworkManager

从官网找到最新版calico的yaml链接(在manifest一栏中找到Download the Calico networking manifest for the Kubernetes API datastore.):Calico安装文档
下载yaml文件部署

# 修改calico.yaml中网卡名称
# - name: CLUSTER_TYPE
#   value: "k8s,bgp"
# 找到上面这一段,在它的下面添加网卡名称字段:(指定calico从ens33跨节点通信,不指定的话,会走lo的IP,没办法跨节点通信,也就没办法给pod划分IP)
- name: IP_AUTODETECTION_METHOD
  value: "interface=ens160"

kubectl apply -f calico.yaml

#测试网络访问
kubectl run busybox --image busybox:1.28  --image-pull-policy=IfNotPresent --restart=Never --rm -it -- sh
ping www.baidu.com
nslookup kubernetes.default.svc.cluster.local

# 注:如果是在Mac上运行的虚拟机,uname -m 看到是aarch64架构,busybox:1.28 arm64的镜像可能无法运行起来。换用alpine:latest就行:
kubectl run alpine --image alpine  --image-pull-policy=IfNotPresent --restart=Never --rm -it -- sh
ping www.baidu.com
nslookup kubernetes.default.svc.cluster.local

配置优化

使用ipvs

将Kube-proxy改为ipvs模式,如果在初始化集群的时候注释了ipvs配置,所以需要自行修改一下:

# 在master01节点执行:
kubectl edit cm kube-proxy -n kube-system

mode: ipvs

# 更新Kube-Proxy的Pod:
kubectl patch daemonset kube-proxy -p "{\"spec\":{\"template\":{\"metadata\":{\"annotations\":{\"date\":\"`date +'%s'`\"}}}}}" -n kube-system

# 验证Kube-Proxy模式
curl 127.0.0.1:10249/proxyMode

延长k8s证书

查看证书过期时间

#在master节点上执行
openssl x509 -in /etc/kubernetes/pki/ca.crt -noout -text | grep -i Not
openssl x509 -in /etc/kubernetes/pki/apiserver.crt -noout -text | grep -i Not

延长证书有效期的脚本

文件命名为:update-kubeadm-cert.sh

#!/bin/bash
set -o errexit
set -o pipefail
# set -o xtrace

log::err() {
  printf "[$(date +'%Y-%m-%dT%H:%M:%S.%N%z')]: \033[31mERROR: \033[0m$@\n"
}

log::info() {
  printf "[$(date +'%Y-%m-%dT%H:%M:%S.%N%z')]: \033[32mINFO: \033[0m$@\n"
}

log::warning() {
  printf "[$(date +'%Y-%m-%dT%H:%M:%S.%N%z')]: \033[33mWARNING: \033[0m$@\n"
}

check_file() {
  if [[ ! -r  ${1} ]]; then
    log::err "can not find ${1}"
    exit 1
  fi
}

# get x509v3 subject alternative name from the old certificate
cert::get_subject_alt_name() {
  local cert=${1}.crt
  check_file "${cert}"
  local alt_name=$(openssl x509 -text -noout -in ${cert} | grep -A1 'Alternative' | tail -n1 | sed 's/[[:space:]]*Address//g')
  printf "${alt_name}\n"
}

# get subject from the old certificate
cert::get_subj() {
  local cert=${1}.crt
  check_file "${cert}"
  local subj=$(openssl x509 -text -noout -in ${cert}  | grep "Subject:" | sed 's/Subject:/\//g;s/\,/\//;s/[[:space:]]//g')
  printf "${subj}\n"
}

cert::backup_file() {
  local file=${1}
  if [[ ! -e ${file}.old-$(date +%Y%m%d) ]]; then
    cp -rp ${file} ${file}.old-$(date +%Y%m%d)
    log::info "backup ${file} to ${file}.old-$(date +%Y%m%d)"
  else
    log::warning "does not backup, ${file}.old-$(date +%Y%m%d) already exists"
  fi
}

# generate certificate whit client, server or peer
# Args:
#   $1 (the name of certificate)
#   $2 (the type of certificate, must be one of client, server, peer)
#   $3 (the subject of certificates)
#   $4 (the validity of certificates) (days)
#   $5 (the x509v3 subject alternative name of certificate when the type of certificate is server or peer)
cert::gen_cert() {
  local cert_name=${1}
  local cert_type=${2}
  local subj=${3}
  local cert_days=${4}
  local alt_name=${5}
  local cert=${cert_name}.crt
  local key=${cert_name}.key
  local csr=${cert_name}.csr
  local csr_conf="distinguished_name = dn\n[dn]\n[v3_ext]\nkeyUsage = critical, digitalSignature, keyEncipherment\n"

  check_file "${key}"
  check_file "${cert}"

  # backup certificate when certificate not in ${kubeconf_arr[@]}
  # kubeconf_arr=("controller-manager.crt" "scheduler.crt" "admin.crt" "kubelet.crt")
  # if [[ ! "${kubeconf_arr[@]}" =~ "${cert##*/}" ]]; then
  #   cert::backup_file "${cert}"
  # fi

  case "${cert_type}" in
    client)
      openssl req -new  -key ${key} -subj "${subj}" -reqexts v3_ext \
        -config <(printf "${csr_conf} extendedKeyUsage = clientAuth\n") -out ${csr}
      openssl x509 -in ${csr} -req -CA ${CA_CERT} -CAkey ${CA_KEY} -CAcreateserial -extensions v3_ext \
        -extfile <(printf "${csr_conf} extendedKeyUsage = clientAuth\n") -days ${cert_days} -out ${cert}
      log::info "generated ${cert}"
    ;;
    server)
      openssl req -new  -key ${key} -subj "${subj}" -reqexts v3_ext \
        -config <(printf "${csr_conf} extendedKeyUsage = serverAuth\nsubjectAltName = ${alt_name}\n") -out ${csr}
      openssl x509 -in ${csr} -req -CA ${CA_CERT} -CAkey ${CA_KEY} -CAcreateserial -extensions v3_ext \
        -extfile <(printf "${csr_conf} extendedKeyUsage = serverAuth\nsubjectAltName = ${alt_name}\n") -days ${cert_days} -out ${cert}
      log::info "generated ${cert}"
    ;;
    peer)
      openssl req -new  -key ${key} -subj "${subj}" -reqexts v3_ext \
        -config <(printf "${csr_conf} extendedKeyUsage = serverAuth, clientAuth\nsubjectAltName = ${alt_name}\n") -out ${csr}
      openssl x509 -in ${csr} -req -CA ${CA_CERT} -CAkey ${CA_KEY} -CAcreateserial -extensions v3_ext \
        -extfile <(printf "${csr_conf} extendedKeyUsage = serverAuth, clientAuth\nsubjectAltName = ${alt_name}\n") -days ${cert_days} -out ${cert}
      log::info "generated ${cert}"
    ;;
    *)
      log::err "unknow, unsupported etcd certs type: ${cert_type}, supported type: client, server, peer"
      exit 1
  esac

  rm -f ${csr}
}

cert::update_kubeconf() {
  local cert_name=${1}
  local kubeconf_file=${cert_name}.conf
  local cert=${cert_name}.crt
  local key=${cert_name}.key

  # generate  certificate
  check_file ${kubeconf_file}
  # get the key from the old kubeconf
  grep "client-key-data" ${kubeconf_file} | awk {'print$2'} | base64 -d > ${key}
  # get the old certificate from the old kubeconf
  grep "client-certificate-data" ${kubeconf_file} | awk {'print$2'} | base64 -d > ${cert}
  # get subject from the old certificate
  local subj=$(cert::get_subj ${cert_name})
  cert::gen_cert "${cert_name}" "client" "${subj}" "${CAER_DAYS}"
  # get certificate base64 code
  local cert_base64=$(base64 -w 0 ${cert})

  # backup kubeconf
  # cert::backup_file "${kubeconf_file}"

  # set certificate base64 code to kubeconf
  sed -i 's/client-certificate-data:.*/client-certificate-data: '${cert_base64}'/g' ${kubeconf_file}

  log::info "generated new ${kubeconf_file}"
  rm -f ${cert}
  rm -f ${key}

  # set config for kubectl
  if [[ ${cert_name##*/} == "admin" ]]; then
    mkdir -p ~/.kube
    cp -fp ${kubeconf_file} ~/.kube/config
    log::info "copy the admin.conf to ~/.kube/config for kubectl"
  fi
}

cert::update_etcd_cert() {
  PKI_PATH=${KUBE_PATH}/pki/etcd
  CA_CERT=${PKI_PATH}/ca.crt
  CA_KEY=${PKI_PATH}/ca.key

  check_file "${CA_CERT}"
  check_file "${CA_KEY}"

  # generate etcd server certificate
  # /etc/kubernetes/pki/etcd/server
  CART_NAME=${PKI_PATH}/server
  subject_alt_name=$(cert::get_subject_alt_name ${CART_NAME})
  cert::gen_cert "${CART_NAME}" "peer" "/CN=etcd-server" "${CAER_DAYS}" "${subject_alt_name}"

  # generate etcd peer certificate
  # /etc/kubernetes/pki/etcd/peer
  CART_NAME=${PKI_PATH}/peer
  subject_alt_name=$(cert::get_subject_alt_name ${CART_NAME})
  cert::gen_cert "${CART_NAME}" "peer" "/CN=etcd-peer" "${CAER_DAYS}" "${subject_alt_name}"

  # generate etcd healthcheck-client certificate
  # /etc/kubernetes/pki/etcd/healthcheck-client
  CART_NAME=${PKI_PATH}/healthcheck-client
  cert::gen_cert "${CART_NAME}" "client" "/O=system:masters/CN=kube-etcd-healthcheck-client" "${CAER_DAYS}"

  # generate apiserver-etcd-client certificate
  # /etc/kubernetes/pki/apiserver-etcd-client
  check_file "${CA_CERT}"
  check_file "${CA_KEY}"
  PKI_PATH=${KUBE_PATH}/pki
  CART_NAME=${PKI_PATH}/apiserver-etcd-client
  cert::gen_cert "${CART_NAME}" "client" "/O=system:masters/CN=kube-apiserver-etcd-client" "${CAER_DAYS}"

  # restart etcd
  docker ps | awk '/k8s_etcd/{print$1}' | xargs -r -I '{}' docker restart {} || true
  log::info "restarted etcd"
}

cert::update_master_cert() {
  PKI_PATH=${KUBE_PATH}/pki
  CA_CERT=${PKI_PATH}/ca.crt
  CA_KEY=${PKI_PATH}/ca.key

  check_file "${CA_CERT}"
  check_file "${CA_KEY}"

  # generate apiserver server certificate
  # /etc/kubernetes/pki/apiserver
  CART_NAME=${PKI_PATH}/apiserver
  subject_alt_name=$(cert::get_subject_alt_name ${CART_NAME})
  cert::gen_cert "${CART_NAME}" "server" "/CN=kube-apiserver" "${CAER_DAYS}" "${subject_alt_name}"

  # generate apiserver-kubelet-client certificate
  # /etc/kubernetes/pki/apiserver-kubelet-client
  CART_NAME=${PKI_PATH}/apiserver-kubelet-client
  cert::gen_cert "${CART_NAME}" "client" "/O=system:masters/CN=kube-apiserver-kubelet-client" "${CAER_DAYS}"

  # generate kubeconf for controller-manager,scheduler,kubectl and kubelet
  # /etc/kubernetes/controller-manager,scheduler,admin,kubelet.conf
  cert::update_kubeconf "${KUBE_PATH}/controller-manager"
  cert::update_kubeconf "${KUBE_PATH}/scheduler"
  cert::update_kubeconf "${KUBE_PATH}/admin"
  set +e
  grep kubelet-client-current.pem /etc/kubernetes/kubelet.conf > /dev/null 2>&1
  kubelet_cert_auto_update=$?
  set -e
  if [[ "$kubelet_cert_auto_update" == "0" ]]; then
    log::warning "does not need to update kubelet.conf"
  else
    cert::update_kubeconf "${KUBE_PATH}/kubelet"
  fi

  # generate front-proxy-client certificate
  # use front-proxy-client ca
  CA_CERT=${PKI_PATH}/front-proxy-ca.crt
  CA_KEY=${PKI_PATH}/front-proxy-ca.key
  check_file "${CA_CERT}"
  check_file "${CA_KEY}"
  CART_NAME=${PKI_PATH}/front-proxy-client
  cert::gen_cert "${CART_NAME}" "client" "/CN=front-proxy-client" "${CAER_DAYS}"

  # restart apiserve, controller-manager, scheduler and kubelet
  docker ps | awk '/k8s_kube-apiserver/{print$1}' | xargs -r -I '{}' docker restart {} || true
  log::info "restarted kube-apiserver"
  docker ps | awk '/k8s_kube-controller-manager/{print$1}' | xargs -r -I '{}' docker restart {} || true
  log::info "restarted kube-controller-manager"
  docker ps | awk '/k8s_kube-scheduler/{print$1}' | xargs -r -I '{}' docker restart {} || true
  log::info "restarted kube-scheduler"
  systemctl restart kubelet
  log::info "restarted kubelet"
}

main() {
  local node_tpye=$1

  KUBE_PATH=/etc/kubernetes
  CAER_DAYS=36500

  # backup $KUBE_PATH to $KUBE_PATH.old-$(date +%Y%m%d)
  cert::backup_file "${KUBE_PATH}"

  case ${node_tpye} in
    etcd)
      # update etcd certificates
      cert::update_etcd_cert
    ;;
    master)
      # update master certificates and kubeconf
      cert::update_master_cert
    ;;
    all)
      # update etcd certificates
      cert::update_etcd_cert
      # update master certificates and kubeconf
      cert::update_master_cert
    ;;
    *)
      log::err "unknow, unsupported certs type: ${cert_type}, supported type: all, etcd, master"
      printf "Documentation:
  example:
    '\033[32m./update-kubeadm-cert.sh all\033[0m' update all etcd certificates, master certificates and kubeconf
      /etc/kubernetes
      ├── admin.conf
      ├── controller-manager.conf
      ├── scheduler.conf
      ├── kubelet.conf
      └── pki
          ├── apiserver.crt
          ├── apiserver-etcd-client.crt
          ├── apiserver-kubelet-client.crt
          ├── front-proxy-client.crt
          └── etcd
              ├── healthcheck-client.crt
              ├── peer.crt
              └── server.crt

    '\033[32m./update-kubeadm-cert.sh etcd\033[0m' update only etcd certificates
      /etc/kubernetes
      └── pki
          ├── apiserver-etcd-client.crt
          └── etcd
              ├── healthcheck-client.crt
              ├── peer.crt
              └── server.crt

    '\033[32m./update-kubeadm-cert.sh master\033[0m' update only master certificates and kubeconf
      /etc/kubernetes
      ├── admin.conf
      ├── controller-manager.conf
      ├── scheduler.conf
      ├── kubelet.conf
      └── pki
          ├── apiserver.crt
          ├── apiserver-kubelet-client.crt
          └── front-proxy-client.crt
"
      exit 1
    esac
}

main "$@"

运行脚本

chmod +x update-kubeadm-cert.sh
./update-kubeadm-cert.sh all

#检查kube-system pod
kubectl get pods -n kube-system

#检查证书有效期
#在master节点上
openssl x509 -in /etc/kubernetes/pki/ca.crt -noout -text | grep -i Not
openssl x509 -in /etc/kubernetes/pki/apiserver.crt -noout -text | grep -i Not

【可选】安装其他插件

# 杜宽老师的Addon仓库
git clone https://gitee.com/dukuan/k8s-ha-install.git
cd k8s-ha-install/
# 查看分支
git branch -a
git checkout manual-installation-v1.33.x # 切换到对应版本的分支(改minorversion数字即可。.x不用改)
cd single/
# 里面有calico、metrics-server、dashboard、krm(杜宽老师开发的多集群管理工具)
kubectl apply -f dashboard-user.yaml dashboard.yaml krm.yaml
# krm默认用户名密码是admin/admin,进去之后在集群管理里面添加集群

【可选】部署Metrics-server

在新版的Kubernetes中系统资源的采集均使用Metrics-server,可以通过Metrics采集节点和Pod的内存、磁盘、CPU和网络的使用率。

将Master01节点的front-proxy-ca.crt复制到所有Node节点:

scp /etc/kubernetes/pki/front-proxy-ca.crt k8s-node01:/etc/kubernetes/pki/front-proxy-ca.crt

在master01上执行,安装metrics server:

cd /root/k8s-ha-install/kubeadm-metrics-server
kubectl create -f comp.yaml

安装完之后就能用:kubectl top node 查看节点资源使用情况。

集群可用性验证

节点均正常:

kubectl get nodes

pod正常:

kubectl get pods -A

集群svc、pod、node网段无任何冲突:

kubectl get svc
kubectl get po -A -owide | grep coredns
kubectl get nodes -owide
# 按上面正常配置,node是192.168,svc是10.96,pod是172.16
# 具体要看子网掩码的配置

如果发现集群网段冲突,只能推翻重建集群。

能够正常创建资源:

kubectl create deploy cluster-test --image=registry.cn-beijing.aliyuncs.com/dotbalo/debug-tools -- sleep 3600

Pod必须能够解析Service(同namespace和跨namespace)

# 进入上一步创建的debug-tools pod
kubectl exec -it <pod-name> --bash

每个节点都必须要能访问Kubernetes的kubernetes svc 443和kube-dns的service 53

# ssh到每个节点
kubectl get svc # 找到默认的kubernetes名称的svc
curl https://10.96.0.1:443 -k # 出现403 forbidden报错说明网络是通的
curl https://10.96.0.10:53 -k # 出现(52)empty from server说明网络是通的

Pod和Pod之间可以正常通讯(同namespace和跨namespace;同节点和跨节点)

# 进入创建的debug-tools pod
kubectl exec -it <pod-name> --bash
# 找到同ns和跨ns的两个pod,分别ping pod-IP看看通不通
# 找到同node和跨node的两个pod,分别ping pod-IP看看通不通

节点和Pod可以正常通信:在所有节点上ping一个Pod IP看看通不通

集群维护

节点关机

公司服务器对于关机和异常断电的容忍度还是很高的。
自己笔记本的集群:
异常断电可能会导致etcd数据丢失,集群起不来,尽量避免。
尽量避免挂起或者暂停。因为也可能会导致集群故障
不用了关机就用shutdown -h now。关机拍快照还节省空间。

节点下线

如果某个节点需要下线,可以使用如下步骤平滑下线:

添加污点禁止调度:

# 手动自己打污点
kubectl taint node k8s-node02 offline=true:NoSchedule
# cordon也可以实现
kubectl cordon node k8s-node02

查询节点是否有重要服务,漂移重要服务至其它节点

kubectl get po -A -owide | grep k8s-node02
# 假设coredns为重要服务,使用rollout重新调度该服务(如果副本多,也可以直接删除Pod,防止全部pod重建)
kubectl rollout restart deploy coredns -n kube-system

确认是否是ingress入口:(ingress-controller或者istio gateway)
如果就这一个入口,先把入口漂移到其他节点
如果很多入口,前端有个LB代理,在LB上把这个节点入口下线
使用drain设置为驱逐状态:

kubectl drain k8s-node02 --ignore-daemonsets --delete-emptydir-data

再次检查节点上的其它服务,基础组件等
查看有无异常的Pod:有无Pending/非Running状态的Pod
使用delete删除节点:

kubectl delete node k8s-node02

节点下线:

kubeadm reset -f
systemctl disable --now kubelet

添加节点

一个全新的节点,按照上面的安装步骤,完成基础配置、内核优化、Runtime安装、K8s组件安装
Master节点上运行:kubeadm token create --print-join-command 打印加入节点命令
新节点上join集群,打上标签kubectl label nodes node01 node-role.kubernetes.io/work=worker

制作k8s安装需要的离线yum源

要全内网环境安装docker、k8s和相关依赖,需要在内部提供安装k8s、docker需要的yum源。首先需要在联网机器上把镜像拉下来。

制作安装docker需要的离线yum源

1、添加docker在线源

yum-config-manager --add-repo https://download.docker.com/linux/centos/dockerce.repo

2、通过如下命令download远程yum源文件,建立本地docker repo库

yum install --downloadonly --downloaddir=/mnt/docker-ce docker-ce
createrepo -d /mnt/docker-ce

3、把/mnt/docker-c下自动下载的rpm打包,传到内网机器,用过如下方法安装:

rpm -Uvh *.rpm --nodeps --force #这是强制安装当前文件夹中所有的rpm包,忽略依赖去安装

制作安装k8s命令行工具需要的离线yum源

1、添加k8s在线源

cat <<EOF > /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64
enabled=1
gpgcheck=1
repo_gpgcheck=1
gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg
https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF

2、通过如下命令download远程yum源文件,建立本地k8s repo库

yum install --downloadonly --resolve kubeadm kubelet kubectl --destdir /mnt/k8s
createrepo -d /mnt/k8s

3、把/mnt/k8s下自动下载的rpm打包,传到内网机器,用过如下方法安装:

rpm -Uvh *.rpm --nodeps --force #这是强制安装当前文件夹中所有的rpm包,忽略依赖去安装

制作不同版本k8s集群需要的离线镜像

#如果用docker做容器,按照下面方面制作离线镜像
kubeadm config print init-defaults > kubeadm.yaml
#修改kubeadm.yaml配置文件如下:
imageRepository: registry.cn-hangzhou.aliyuncs.com/google_containers
#上述配置表示,安装k8s需要的镜像要从阿里云镜像仓库拉取

#通过如下命令下载镜像:
kubeadm config images pull --config kubeadm.yaml
#然后把下载好的镜像打包镜像:
docker save -o a.tar.gz registry.aliyuncs.com/google_containers/pause:3.7 jenkins/jenkins:latest ....
#传到内网k8s节点,通过如下命令导出镜像:
ctr -n=k8s.io images import a.tar.gz
docker load -i a.tar.gz

#如果用containerd做容器,按照下面方面制作离线镜像
kubeadm config print init-defaults > kubeadm.yaml
#修改kubeadm.yaml配置文件如下:
imageRepository: registry.cn-hangzhou.aliyuncs.com/google_containers
#上述配置表示,安装k8s需要的镜像要从阿里云镜像仓库拉取
#通过如下命令下载镜像:
kubeadm config images pull --config kubeadm.yaml

ctr -n=k8s.io images ls
#ls出来的的所有镜像做到离线文件里
ctr -n=k8s.io images export k8s1.28.0.tar.gz
#导入到内网环境解压
ctr -n=k8s.io images import k8s1.28.0.tar.gz

Windows下安装kubectl

推荐使用scoop安装:

安装scoop参考scoop安装helm部分
安装kubectl:scoop install kubectl kubelogin

安装k9s

kubectl可视化插件:k9s GitHub
安装指南:k9s安装指南

在线安装

方法1:via webi (在现在rockylinux vm上使用的方法)

curl -sS https://webinstall.dev/k9s | bash

方法2:在ubuntu上

wget https://github.com/derailed/k9s/releases/download/v0.40.5/k9s_linux_amd64.deb && apt install ./k9s_linux_amd64.deb && rm k9s_linux_amd64.deb

方法3:via snap

snap install k9s --devmode

离线安装

下载安装包

先从github下载amd64版本安装包:Releases · derailed/k9s
安装包放到/root/下

本地安装脚本

#!/bin/bash

############################################################
# K9s Local Installation Script
# Modified to install from local tar.gz file instead of downloading
############################################################

# Configuration for local installation
K9S_LOCAL_ARCHIVE="/root/k9s_Linux_amd64.tar.gz"
INSTALL_DIR="$HOME/.local/bin"

# Check if local archive exists, if so use local installation
if [ -f "$K9S_LOCAL_ARCHIVE" ]; then
    echo "Found local k9s archive, installing from: $K9S_LOCAL_ARCHIVE"

    # Create installation directory
    mkdir -p "$INSTALL_DIR"

    # Create temporary directory for extraction
    TEMP_DIR=$(mktemp -d)

    # Extract and install
    echo "Extracting k9s from local archive..."
    tar -xzf "$K9S_LOCAL_ARCHIVE" -C "$TEMP_DIR"

    if [ -f "$TEMP_DIR/k9s" ]; then
        echo "Installing k9s to $INSTALL_DIR/k9s"
        cp "$TEMP_DIR/k9s" "$INSTALL_DIR/k9s"
        chmod +x "$INSTALL_DIR/k9s"

        # Clean up
        rm -rf "$TEMP_DIR"

        echo "k9s installed successfully to $INSTALL_DIR/k9s"
        echo "Make sure $INSTALL_DIR is in your PATH to use k9s command"
        exit 0
    else
        echo "Error: k9s binary not found in archive"
        rm -rf "$TEMP_DIR"
        exit 1
    fi
fi

# Fallback to original webi installation if local archive not found
echo "Local archive not found at $K9S_LOCAL_ARCHIVE, falling back to webi installation..."

export WEBI_PKG='k9s@stable'
export WEBI_HOST='https://webi.sh'
export WEBI_CHECKSUM='adad246e'

#########################################
#                                       #
# Display Debug Info in Case of Failure #
#                                       #
#########################################

fn_show_welcome() { (
    echo ""
    echo ""
    # invert t_task and t_pkg for top-level welcome message
    printf -- ">>> %s %s  <<<\n" \
        "$(t_pkg 'Welcome to') $(t_task 'Webi')$(t_pkg '!')" \
        "$(t_dim "- modern tools, instant installs.")"
    echo "    We expect your experience to be $(t_em 'absolutely perfect')!"
    echo ""
    echo "    $(t_attn 'Success')? Star it!   $(t_url 'https://github.com/webinstall/webi-installers')"
    echo "    $(t_attn 'Problem')? Report it: $(t_url 'https://github.com/webinstall/webi-installers/issues')"
    echo "                        $(t_dim "(your system is") $(t_host "$(fn_get_os)")/$(t_host "$(uname -m)") $(t_dim "with") $(t_host "$(fn_get_libc)") $(t_dim "&") $(t_host "$(fn_get_http_client_name)")$(t_dim ")")"

    sleep 0.2
); }

fn_get_os() { (
    # Ex:
    #     GNU/Linux
    #     Android
    #     Linux (often Alpine, musl)
    #     Darwin
    b_os="$(uname -o 2> /dev/null || echo '')"
    b_sys="$(uname -s)"
    if test -z "${b_os}" || test "${b_os}" = "${b_sys}"; then
        # ex: 'Darwin' (and plain, non-GNU 'Linux')
        echo "${b_sys}"
        return 0
    fi

    if echo "${b_os}" | grep -q "${b_sys}"; then
        # ex: 'GNU/Linux'
        echo "${b_os}"
        return 0
    fi

    # ex: 'Android/Linux'
    echo "${b_os}/${b_sys}"
); }

fn_get_libc() { (
    # Ex:
    #     musl
    #     libc
    if ldd /bin/ls 2> /dev/null | grep -q 'musl' 2> /dev/null; then
        echo 'musl'
    elif fn_get_os | grep -q 'GNU|Linux'; then
        echo 'gnu'
    else
        echo 'libc'
    fi
); }

fn_get_http_client_name() { (
    # Ex:
    #     curl
    #     curl+wget
    b_client=""
    if command -v curl > /dev/null; then
        b_client="curl"
    fi
    if command -v wget > /dev/null; then
        if test -z "${b_client}"; then
            b_client="wget"
        else
            b_client="curl+wget"
        fi
    fi

    echo "${b_client}"
); }

#########################################
#                                       #
#      For Making the Display Nice      #
#                                       #
#########################################

# Term Types
t_cmd() { (fn_printf '\e[2m\e[35m%s\e[39m\e[22m' "${1}"); }
t_host() { (fn_printf '\e[2m\e[33m%s\e[39m\e[22m' "${1}"); }
t_link() { (fn_printf '\e[1m\e[36m%s\e[39m\e[22m' "${1}"); }
t_path() { (fn_printf '\e[2m\e[32m%s\e[39m\e[22m' "${1}"); }
t_pkg() { (fn_printf '\e[1m\e[32m%s\e[39m\e[22m' "${1}"); }
t_task() { (fn_printf '\e[36m%s\e[39m' "${1}"); }
t_url() { (fn_printf '\e[2m%s\e[22m' "${1}"); }

# Levels
t_info() { (fn_printf '\e[1m\e[36m%s\e[39m\e[22m' "${1}"); }
t_attn() { (fn_printf '\e[1m\e[33m%s\e[39m\e[22m' "${1}"); }
t_warn() { (fn_printf '\e[1m\e[33m%s\e[39m\e[22m' "${1}"); }
t_err() { (fn_printf '\e[31m%s\e[39m' "${1}"); }

# Styles
t_bold() { (fn_printf '\e[1m%s\e[22m' "${1}"); }
t_dim() { (fn_printf '\e[2m%s\e[22m' "${1}"); }
t_em() { (fn_printf '\e[3m%s\e[23m' "${1}"); }
t_under() { (fn_printf '\e[4m%s\e[24m' "${1}"); }

# FG Colors
t_cyan() { (fn_printf '\e[36m%s\e[39m' "${1}"); }
t_green() { (fn_printf '\e[32m%s\e[39m' "${1}"); }
t_magenta() { (fn_printf '\e[35m%s\e[39m' "${1}"); }
t_yellow() { (fn_printf '\e[33m%s\e[39m' "${1}"); }

fn_printf() { (
    a_style="${1}"
    a_text="${2}"
    if fn_is_tty; then
        #shellcheck disable=SC2059
        printf -- "${a_style}" "${a_text}"
    else
        printf -- '%s' "${a_text}"
    fi
); }

fn_sub_home() { (
    my_rel=${HOME}
    my_abs=${1}
    echo "${my_abs}" | sed "s:^${my_rel}:~:"
); }

###################################
#                                 #
#       Detect HTTP Client        #
#                                 #
###################################

fn_wget() { (
    # Doc:
    #     Downloads the file at the given url to the given path
    a_url="${1}"
    a_path="${2}"

    cmd_wget="wget -c -q --user-agent"
    if fn_is_tty; then
        cmd_wget="wget -c -q --show-progress --user-agent"
    fi
    # busybox wget doesn't support --show-progress
    # See
    if readlink "$(command -v wget)" | grep -q busybox; then
        cmd_wget="wget --user-agent"
    fi

    b_triple_ua="$(fn_get_target_triple_user_agent)"
    b_agent="webi/wget ${b_triple_ua}"
    if command -v curl > /dev/null; then
        b_agent="webi/wget+curl ${b_triple_ua}"
    fi

    if ! $cmd_wget "${b_agent}" "${a_url}" -O "${a_path}"; then
        echo >&2 "    $(t_err "failed to download (wget)") '$(t_url "${a_url}")'"
        echo >&2 "    $cmd_wget '${b_agent}' '${a_url}' -O '${a_path}'"
        echo >&2 "    $(wget -V)"
        return 1
    fi
); }

fn_curl() { (
    # Doc:
    #     Downloads the file at the given url to the given path
    a_url="${1}"
    a_path="${2}"

    cmd_curl="curl -f -sSL -#"
    if fn_is_tty; then
        cmd_curl="curl -f -sSL"
    fi

    b_triple_ua="$(fn_get_target_triple_user_agent)"
    b_agent="webi/curl ${b_triple_ua}"
    if command -v wget > /dev/null; then
        b_agent="webi/curl+wget ${b_triple_ua}"
    fi

    if ! $cmd_curl -A "${b_agent}" "${a_url}" -o "${a_path}"; then
        echo >&2 "    $(t_err "failed to download (curl)") '$(t_url "${a_url}")'"
        echo >&2 "    $cmd_curl -A '${b_agent}' '${a_url}' -o '${a_path}'"
        echo >&2 "    $(curl -V)"
        return 1
    fi
); }

fn_get_target_triple_user_agent() { (
    # Ex:
    #     x86_64/unknown GNU/Linux/5.15.107-2-pve gnu
    #     arm64/unknown Darwin/22.6.0 libc
    echo "$(uname -m)/unknown $(fn_get_os)/$(uname -r) $(fn_get_libc)"
); }

fn_download_to_path() { (
    a_url="${1}"
    a_path="${2}"

    mkdir -p "$(dirname "${a_path}")"
    if command -v curl > /dev/null; then
        fn_curl "${a_url}" "${a_path}.part"
    elif command -v wget > /dev/null; then
        fn_wget "${a_url}" "${a_path}.part"
    else
        echo >&2 "    $(t_err "failed to detect HTTP client (curl, wget)")"
        return 1
    fi
    mv "${a_path}.part" "${a_path}"
); }

##############################################
#                                            #
# Install or Update Webi and Install Package #
#                                            #
##############################################

webi_bootstrap() { (
    a_path="${1}"

    echo ""
    echo "$(t_task 'Bootstrapping') $(t_pkg 'Webi')"

    b_path_rel="$(fn_sub_home "${a_path}")"
    b_checksum=""
    if test -r "${a_path}"; then
        b_checksum="$(fn_checksum "${a_path}")"
    fi
    if test "$b_checksum" = "${WEBI_CHECKSUM}"; then
        echo "    $(t_dim 'Found') $(t_path "${b_path_rel}")"
        sleep 0.1
        return 0
    fi

    b_webi_file_url="${WEBI_HOST}/packages/webi/webi.sh"
    b_tmp=''
    if test -r "${a_path}"; then
        b_ts="$(date -u '+%s')"
        b_tmp="${a_path}.${b_ts}.bak"
        mv "${a_path}" "${b_tmp}"
        echo "    Updating $(t_path "${b_path_rel}")"
    fi

    echo "    Downloading $(t_url "${b_webi_file_url}")"
    echo "        to $(t_path "${b_path_rel}")"
    fn_download_to_path "${b_webi_file_url}" "${a_path}"
    chmod u+x "${a_path}"

    if test -r "${b_tmp}"; then
        rm -f "${b_tmp}"
    fi
); }

fn_checksum() {
    a_filepath="${1}"

    if command -v sha1sum > /dev/null; then
        sha1sum "${a_filepath}" | cut -d' ' -f1 | cut -c 1-8
        return 0
    fi

    if command -v shasum > /dev/null; then
        shasum "${a_filepath}" | cut -d' ' -f1 | cut -c 1-8
        return 0
    fi

    if command -v sha1 > /dev/null; then
        sha1 "${a_filepath}" | cut -d'=' -f2 | cut -c 2-9
        return 0
    fi

    echo >&2 "    warn: no sha1 sum program"
    date '+%F %H:%M'
}

##############################################
#                                            #
#          Detect TTY and run main           #
#                                            #
##############################################

fn_is_tty() {
    if test "${WEBI_TTY}" = 'tty'; then
        return 0
    fi
    return 1
}

fn_detect_tty() { (
    # stdin will NOT be a tty if it's being piped
    # stdout & stderr WILL be a tty even when piped
    # they are not a tty if being captured or redirected
    # 'set -i' is NOT available in sh
    if test -t 1 && test -t 2; then
        return 0
    fi

    return 1
); }

main() { (
    set -e
    set -u

    WEBI_TTY="${WEBI_TTY:-}"
    if test -z "${WEBI_TTY}"; then
        if fn_detect_tty; then
            WEBI_TTY="tty"
        fi
        export WEBI_TTY
    fi

    if test -z "${WEBI_WELCOME:-}"; then
        fn_show_welcome
    fi
    export WEBI_WELCOME='shown'

    # note: we may support custom locations in the future
    export WEBI_HOME="${HOME}/.local"
    b_home="$(fn_sub_home "${WEBI_HOME}")"
    b_webi_path="${WEBI_HOME}/bin/webi"
    b_webi_path_rel="${b_home}/bin/webi"

    WEBI_CURRENT="${WEBI_CURRENT:-}"
    if test "${WEBI_CURRENT}" != "${WEBI_CHECKSUM}"; then
        webi_bootstrap "${b_webi_path}"
        export WEBI_CURRENT="${WEBI_CHECKSUM}"
    fi

    echo "    Running $(t_cmd "${b_webi_path_rel} ${WEBI_PKG}")"
    echo ""

    "${b_webi_path}" "${WEBI_PKG}"
); }

main

安装

chmod +x k9s-local-install.sh
./k9s0local-install.sh

echo 'export PATH="$HOME/.local/bin:$PATH"' >> ~/.bashrc
source ~/.bashrc

再新开一个terminal就可以运行K9s了

2025最新-企业级高可用集群-基于rockylinux

企业级高可用集群架构设计

架构图

控制节点资源配置

工作节点资源配置

磁盘划分

控制节点

工作节点

网络划分

企业级高可用架构落地实战

节点准备

实验环境规划

节点磁盘挂载

挂载etcd数据盘

挂载data盘

基本配置

内核优化

高可用组件安装

配置haproxy

配置keepalived

Master01配置

Master02配置

Master03配置

健康检查文件

启动服务

测试VIP

快照

Runtime安装

安装docker和containerd

配置containerd

K8s组件安装

集群初始化

加入节点

创建kubeconfig

Worker node打标签

问题排查

安装网络插件Calico

配置优化

使用ipvs

延长k8s证书

查看证书过期时间

延长证书有效期的脚本

运行脚本

【可选】安装其他插件

【可选】部署Metrics-server

集群可用性验证

集群维护

节点关机

节点下线

添加节点

制作k8s安装需要的离线yum源

制作安装docker需要的离线yum源

制作安装k8s命令行工具需要的离线yum源

制作不同版本k8s集群需要的离线镜像

Windows下安装kubectl

安装k9s

在线安装

离线安装

下载安装包

本地安装脚本

安装
